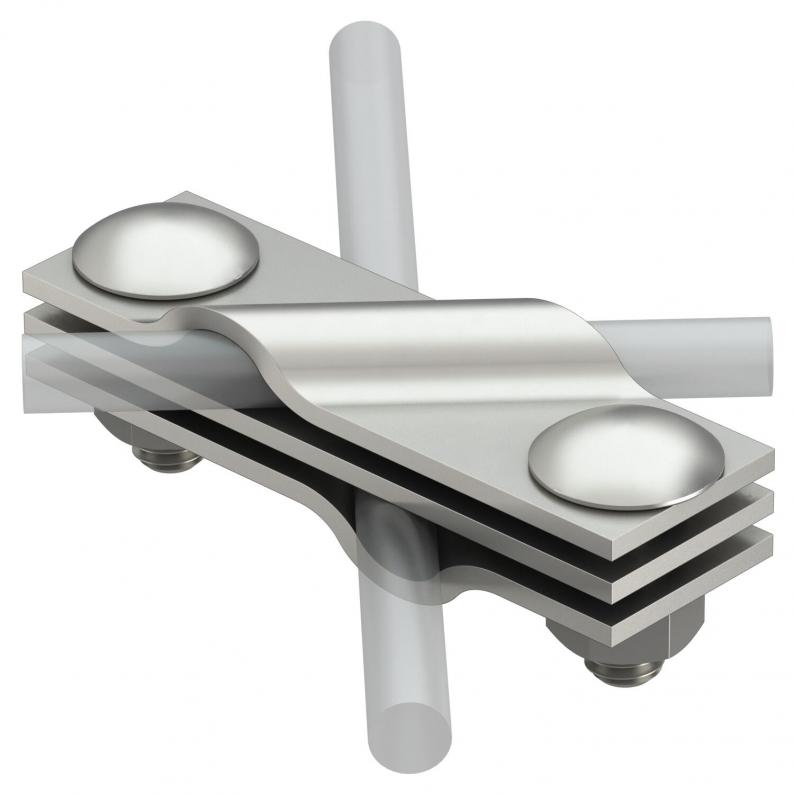

Diagonal connector with intermediate plate, for A2 round conductor
Type 2760 8 | Item no. 5001612 | EAN 4012195721123
Item no. / Type
5001612 / 2760 8
Smallest selling unit: 5 piece
5piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• To connect round conductors 8‒10 mm
• Mounted with 2 truss-head bolts M10 x 30 and 2 hexagonal bolts M10
• With adapter plate
• To connect round conductors 8‒10 mm
• Mounted with 2 truss-head bolts M10 x 30 and 2 hexagonal bolts M10
• With adapter plate
Technical data
Technical data
| Intermediate plate | yes |
|---|---|
| Type of fastening screw | Gutter bolt |
| Type of connector | Connectors |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H/100 kA |
| Fit | Rd 8-10 mm |
| Dimension | RD 8 |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 10 mm |
| Clamping range, min. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,52 kg CO2e / 1 Piece |

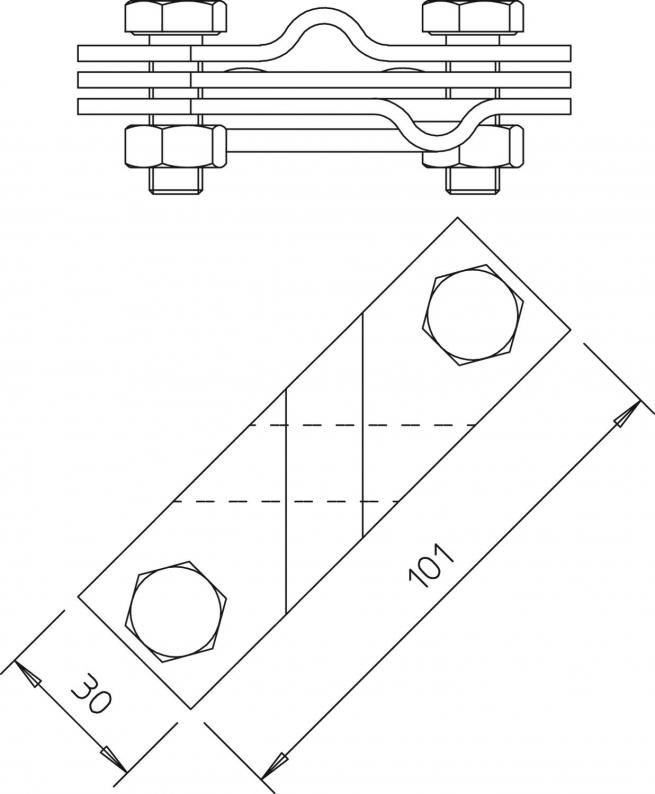

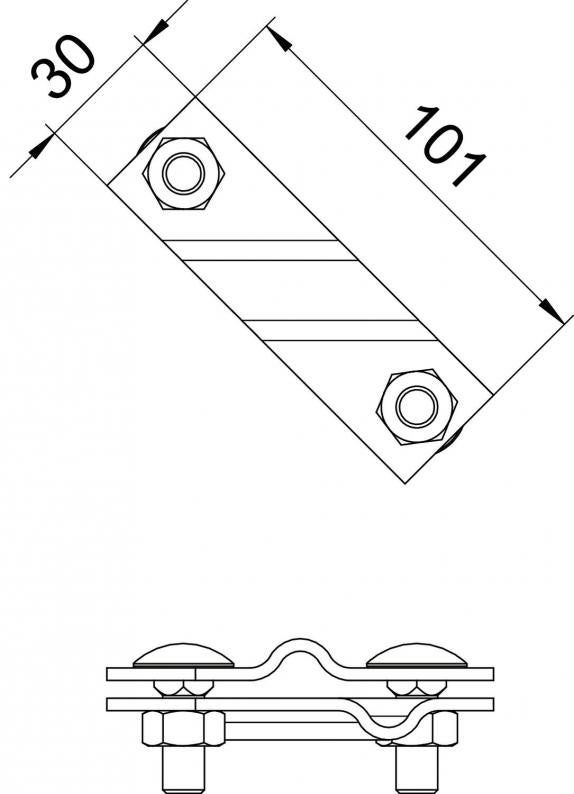

Dimensions
| Dimension A | 101 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
