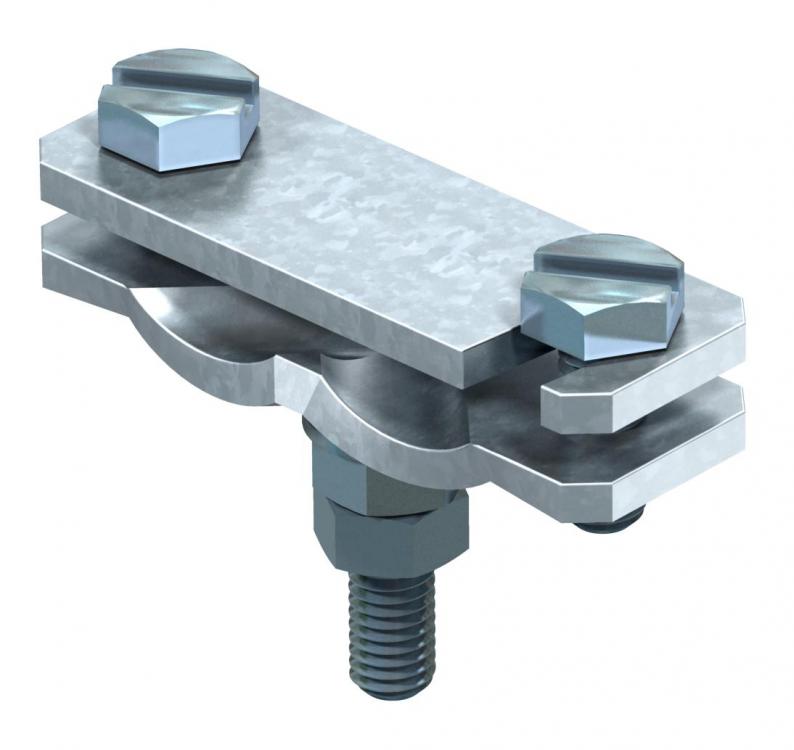

Diagonal clamp with bolt FT
Type 250 A-BO | Item no. 5313066 | EAN 4012195806530
Item no. / Type
5313066 / 250 A-BO
Smallest selling unit: 25 piece
25piece
Description
• For reinforced steels Ø 6-22 mm and flat conductor 50 x 4
• Installed with bolts M10 x 25
• Simple installation with open slot
• With flange-welded bolts M10 x 40, inc. 2 washers and 2 nuts
• Installed with bolts M10 x 25
• Simple installation with open slot
• With flange-welded bolts M10 x 40, inc. 2 washers and 2 nuts
Technical data
Dimensions
| Dimension L | 25 mm |
|---|
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Connectors |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | H/100 kA |
| Round conductor diameter, conductor 1, max. | 22 mm |
| Round conductor diameter, conductor 1, min. | 6 mm |
| Flat conductor width, conductor 2, max. | 5 |
| Flat conductor width, conductor 2, min. | 0 |
| Fit | Rd 6-22/max. FL50 mm |

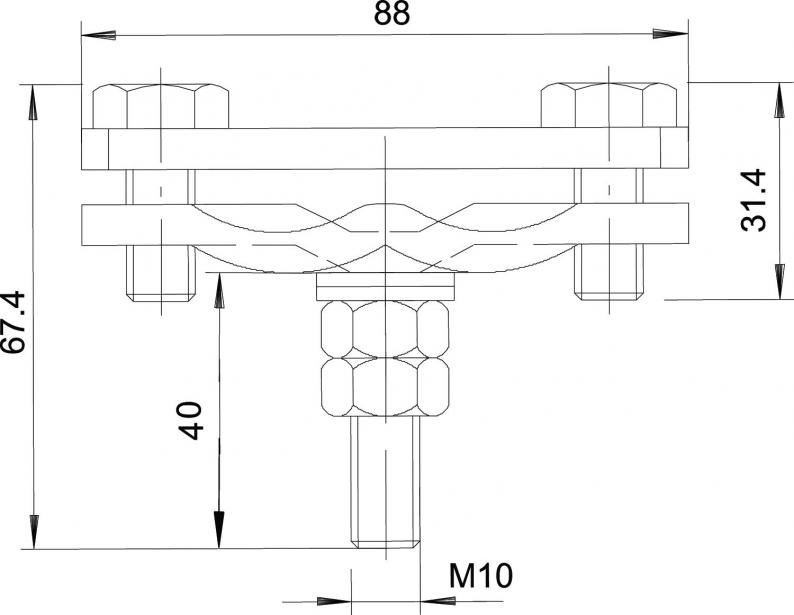

| Dimension | 88x30x70 |
| Surface | Hot galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5571 kg CO2e / 1 Piece |
