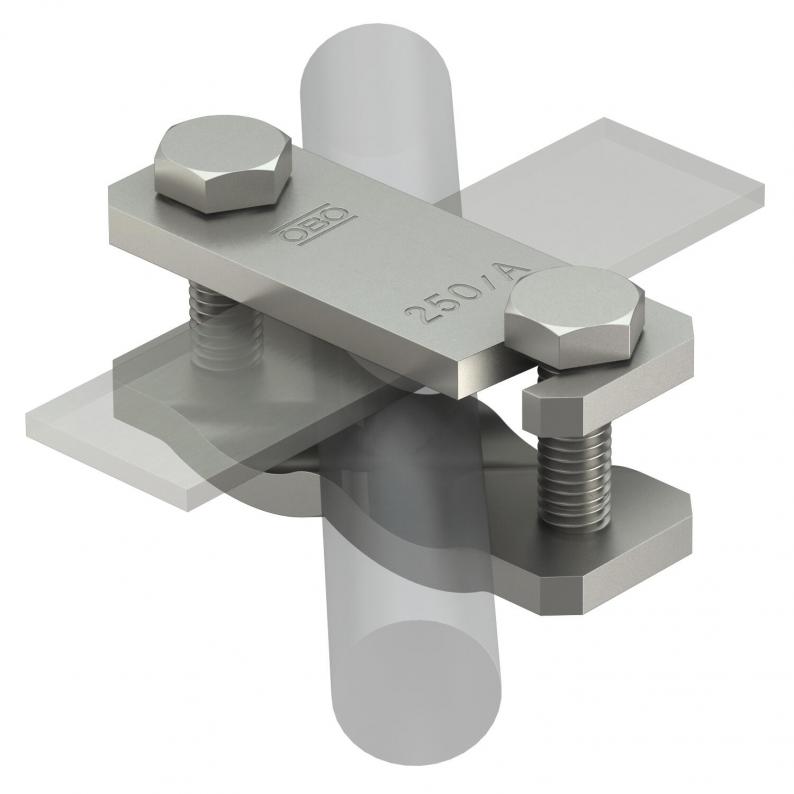

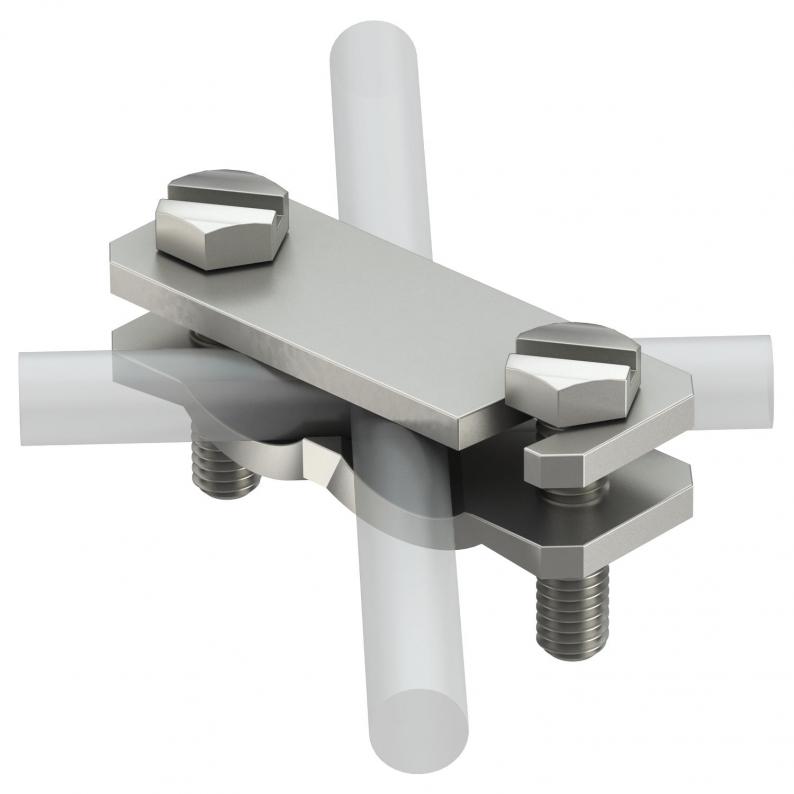

Diagonal clamp for flat conductors and round conductors A2
Type 250 A-VA
|Item no. 5313023
|EAN 4012195740476
Item no. / Type
5313023 / 250 A-VA
Smallest selling unit: 10 piece
10piece
piece
Description
• For reinforced steels Ø 6–22 mm and flat conductors 50 x 4
• Mounted with bolts M10 x 40
• Simple mounting through open slot
• Mounted with bolts M10 x 40
• Simple mounting through open slot
Technical data
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Connectors |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | H/100 kA |
| Round conductor diameter, conductor 1, min. | 6 mm |
| Round conductor diameter, conductor 1, max. | 22 mm |
| Flat conductor width, conductor 2, min. | 0 |
| Flat conductor width, conductor 2, max. | 50 |
| Fit | Rd 6-22/max. FL50 mm |
| Dimension | 88x30x45 |
| Material | Stainless steel 1.4301 |

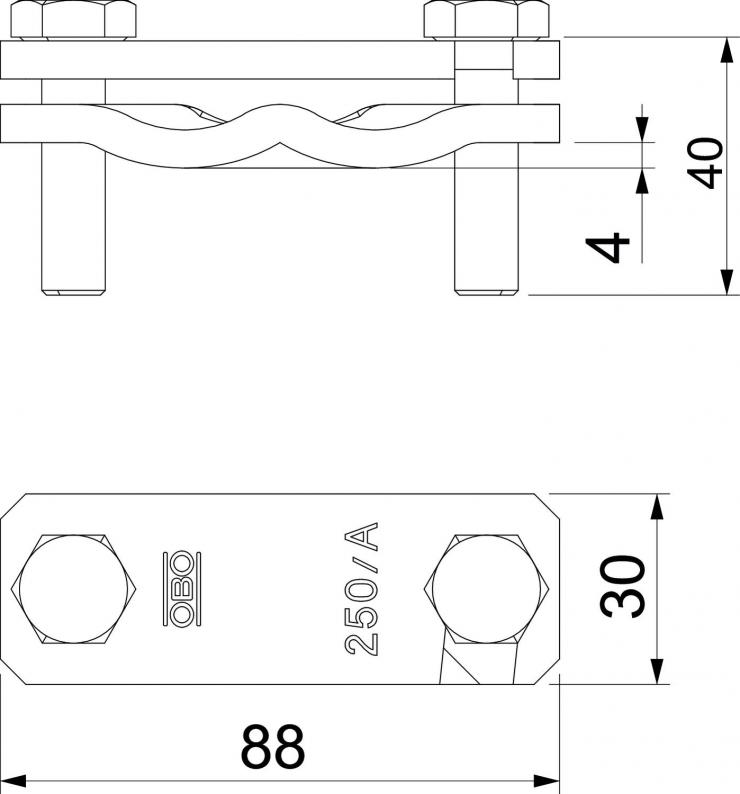

Dimensions
| Dimension L | 40 mm |
|---|---|
| Dimension A | 30 mm |
| Dimension B | 88 mm |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1873 kg CO2e / 1 Piece |
|---|
