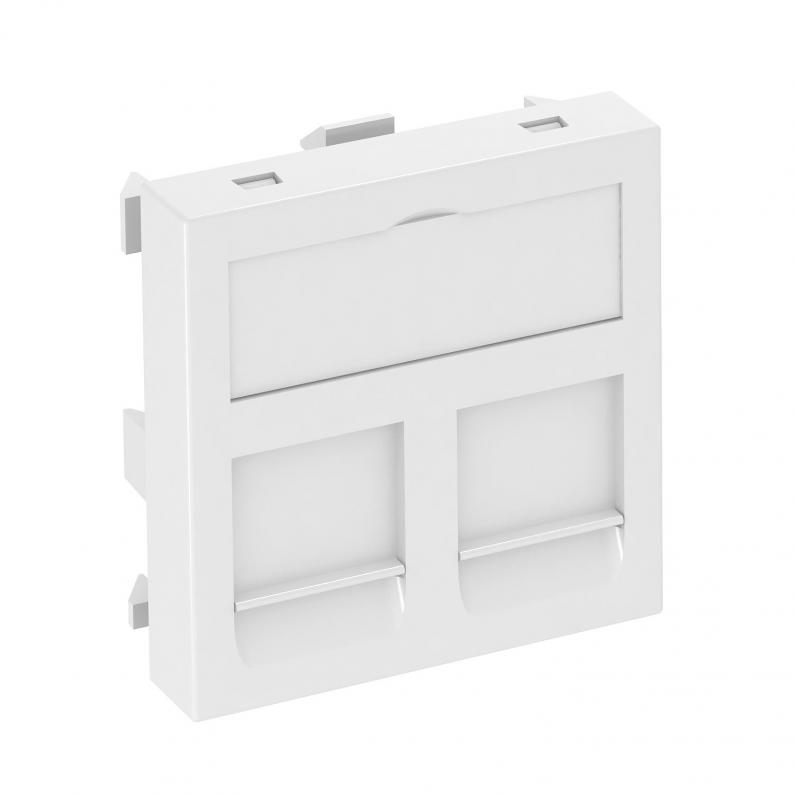

Data technology support, 1 module, straight outlet, type RM
Type DTG-2RM RW1 | Item no. 6119292 | EAN 4012195887430
Item no. / Type
Colour
With dust protection
yes
Smallest selling unit: 1 piece
1piece
Description
Data technology support with straight outlet and locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type RM has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.
The type RM data technology support is suitable for accepting the following data connection modules: Types ASM-C5, ASM-C5 G, ASM-C6 and ASM-C6 G; R&M: Cat. 5 and Cat. 6 modules without support plate.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
The type RM data technology support is suitable for accepting the following data connection modules: Types ASM-C5, ASM-C5 G, ASM-C6 and ASM-C6 G; R&M: Cat. 5 and Cat. 6 modules without support plate.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
Technical data

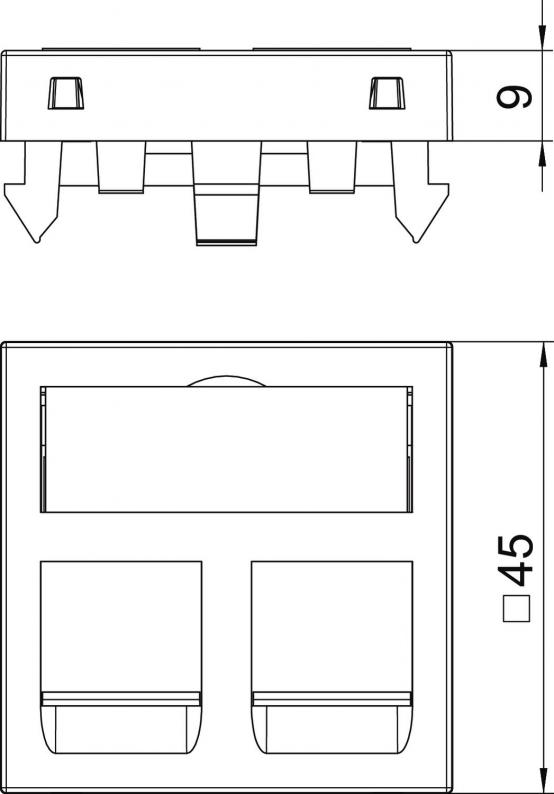

Dimensions
| Width | 45 mm |
|---|---|
| Height | 45 mm |
Technical data
| Hinged cover | no |
|---|---|
| Halogen-free | yes |
| Number of units | 1 |
| Strain relief option | no |
| Protection rating | IP20 |
| Support ring | no |
| With dust protection | yes |
| With printed label | no |
| Lamp-wire connector | no |
| Depth | 9 mm |
| Surface version | Matt |
| Transparent | no |
| Combination | Basic element with central cover plate |
| Use | Installable data connector |
| Labelling panel | With labelling panel |
| Fastening type | Lock |
| Mounting opening | Type RM |
| Dimension | 45x45mm |
| Material | Polycarbonate |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1911 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Variants
Type
With dust protection
Colour
Item no.
DTG-2RM RW1
yes
Pure white; RAL 9010
6119292
DTG-2RM SWGR1
yes
Black-grey; RAL 7021
6119294
DTG-2RM AL1
yes
Aluminium painted
6119296
Colour
DTG-2RM RW1
Item no.
6119292
With dust protection
yes
Colour
Pure white; RAL 9010
DTG-2RM SWGR1
Item no.
6119294
With dust protection
yes
Colour
Black-grey; RAL 7021
DTG-2RM AL1
Item no.
6119296
With dust protection
yes
Colour
Aluminium painted
