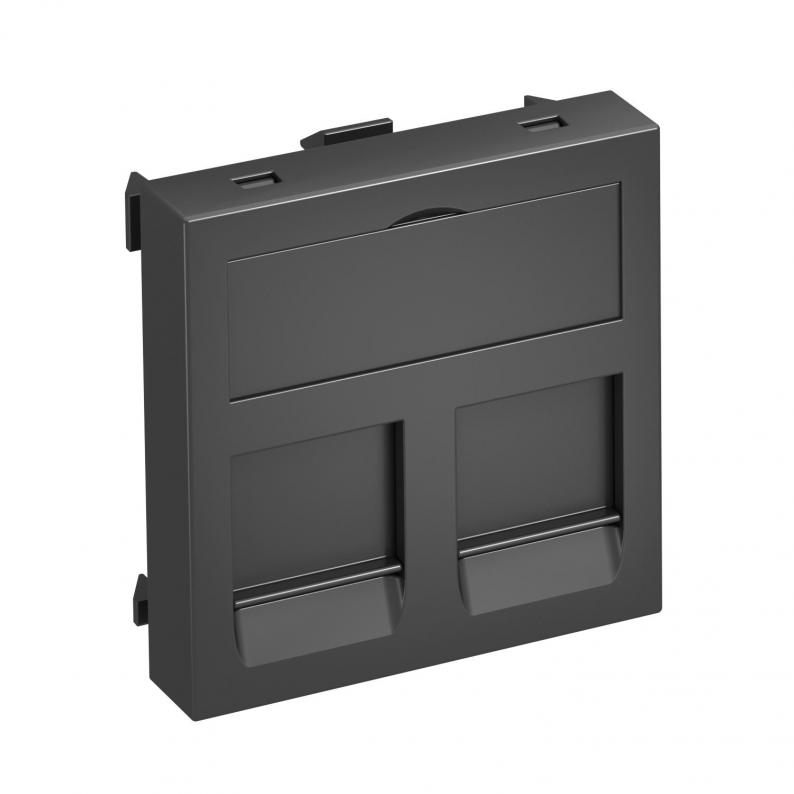

Data technology support, 1 module, straight outlet, type EP

Type DTG-2EP SWGR1 | Item no. 6119234 | EAN 4012195697084

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Show all variants

Item no. / Type

Colour

With dust protection

yes

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Data technology support with straight outlet and locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type EP has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.
The type EP data technology support is suitable for accepting the following data connection modules: Leoni Kerpen: MegaLine-Connect45 ELine.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.

Technical data

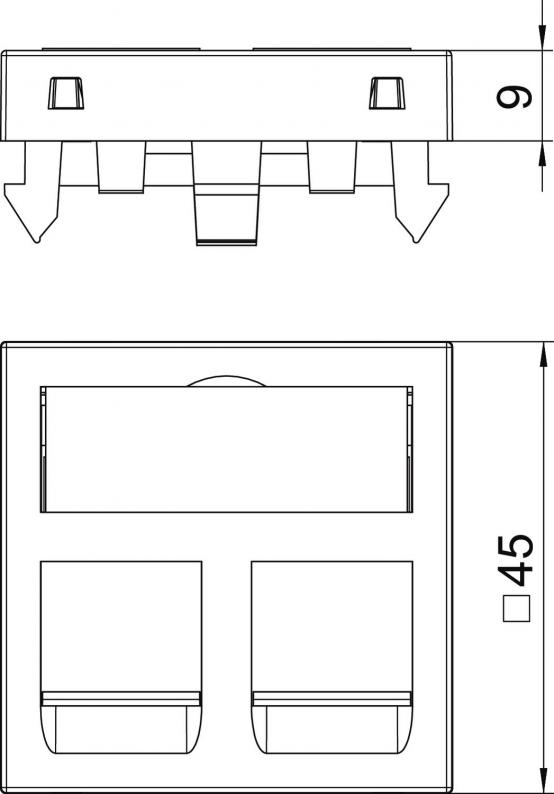

Dimensions

Width	45 mm
Height	45 mm

Technical data

Hinged cover	no
Halogen-free	yes
Strain relief option	no
Protection rating	IP20
Support ring	no
With dust protection	yes
With printed label	no
Lamp-wire connector	no
Depth	9 mm
Surface version	Matt
Transparent	no
Combination	Basic element with central cover plate
Use	Installable data connector
Labelling panel	With labelling panel
Fastening type	Lock
Mounting opening	Type EP
Dimension	45x45mm
Material	Polycarbonate
Colour	Black-grey; RAL 7021
CO2 Footprint (GWP) Cradle-to-Gate	0,1696 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (4)

Declarations (2)

Product images (2)

3D data downloads (1)

Tender specifications (2)

Variants

Colour

DTG-2EP RW1

Item no.

6119232

With dust protection

yes

Colour

Pure white; RAL 9010

DTG-2EP SWGR1

Item no.

6119234

With dust protection

yes

Colour

Black-grey; RAL 7021

DTG-2EP AL1

Item no.

6119236

With dust protection

yes

Colour

Aluminium painted
