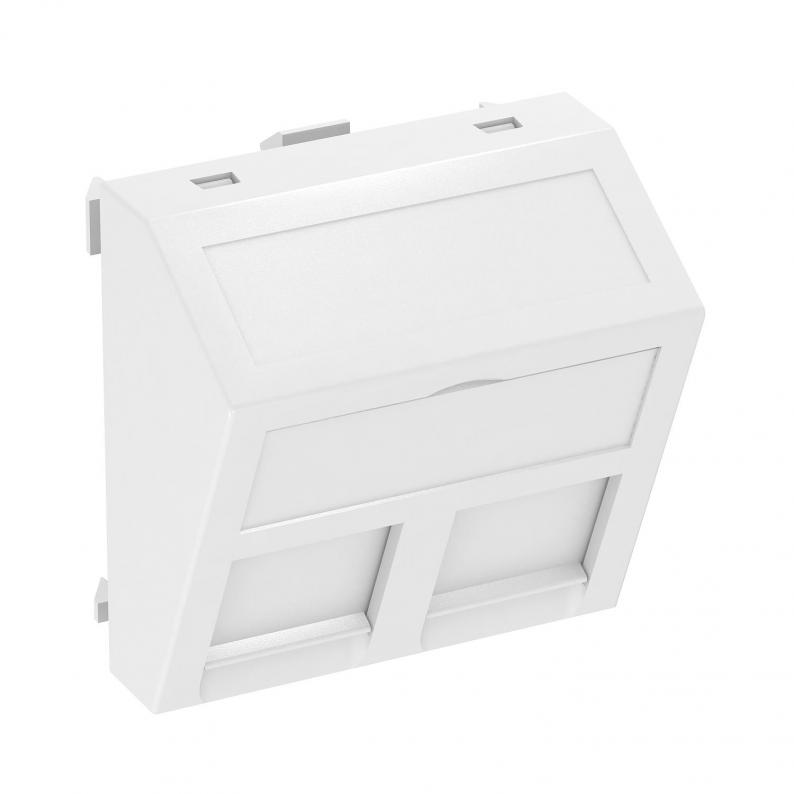

Data technology support, 1 module, slanting outlet, type PA

Data technology support, 1 module, slanting outlet, type PA

Type DTS-2PA RW1 | Item no. 6119262 | EAN 4012195697381

Show all variants
Item no. / Type
Colour
With dust protection
yes

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Data technology support with slanting outlet and locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type PA has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.
The type PA data technology support is suitable for accepting the following data connection modules: Panduit: Mini-Com.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
  • CO₂ footprint (PCF)

Technical data

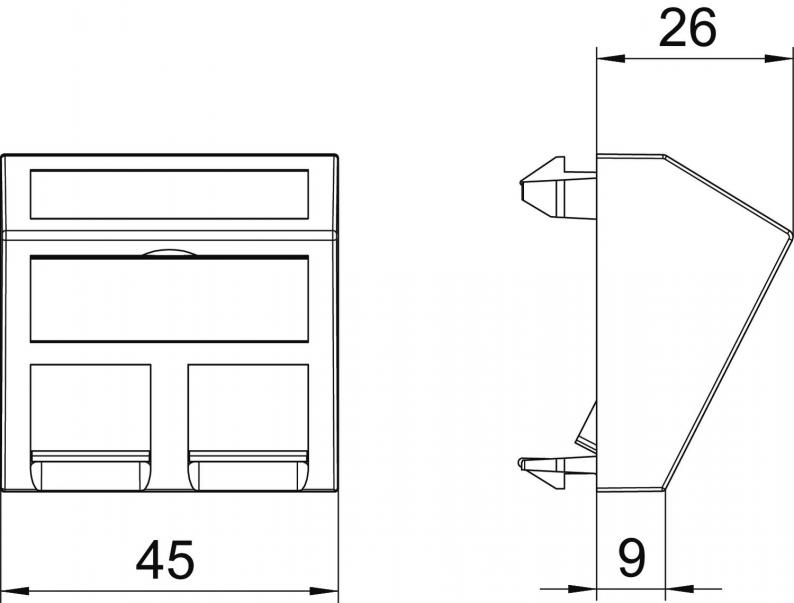

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeyes
Number of units1
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionyes
With printed labelno
Lamp-wire connectorno
Depth26 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseInstallable data connector
Labelling panelWith labelling panel
Fastening typeLock
Mounting openingType PA
Dimension45x45mm
MaterialPolycarbonate
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,1866 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Colour
DTS-2PA RW1
Item no.
6119262
With dust protection
yes
Colour
Pure white; RAL 9010
DTS-2PA SWGR1
Item no.
6119264
With dust protection
yes
Colour
Black-grey; RAL 7021
DTS-2PA AL1
Item no.
6119266
With dust protection
yes
Colour
Aluminium painted
