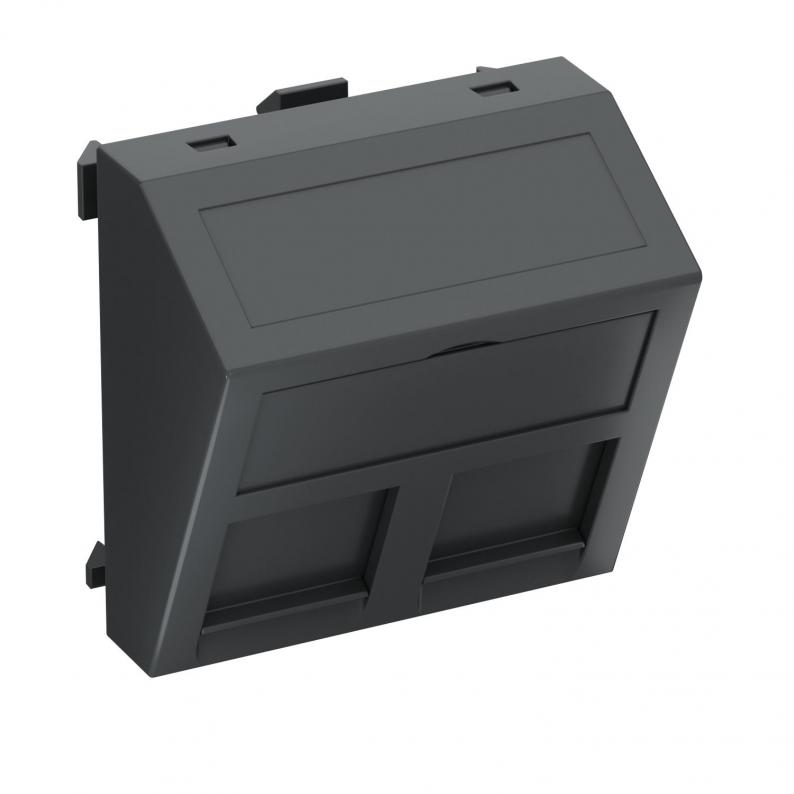

Data technology support, 1 module, slanting outlet, type EP
Type DTS-2EP SWGR1 | Item no. 6119270 | EAN 4012195697480
Item no. / Type
Colour
With dust protection
yes
Smallest selling unit: 1 piece
1piece
Description
Data technology support with slanting outlet and locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type EP has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.
The type EP data technology support is suitable for accepting the following data connection modules: Leoni Kerpen: MegaLine-Connect45 ELine.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
The type EP data technology support is suitable for accepting the following data connection modules: Leoni Kerpen: MegaLine-Connect45 ELine.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
Technical data

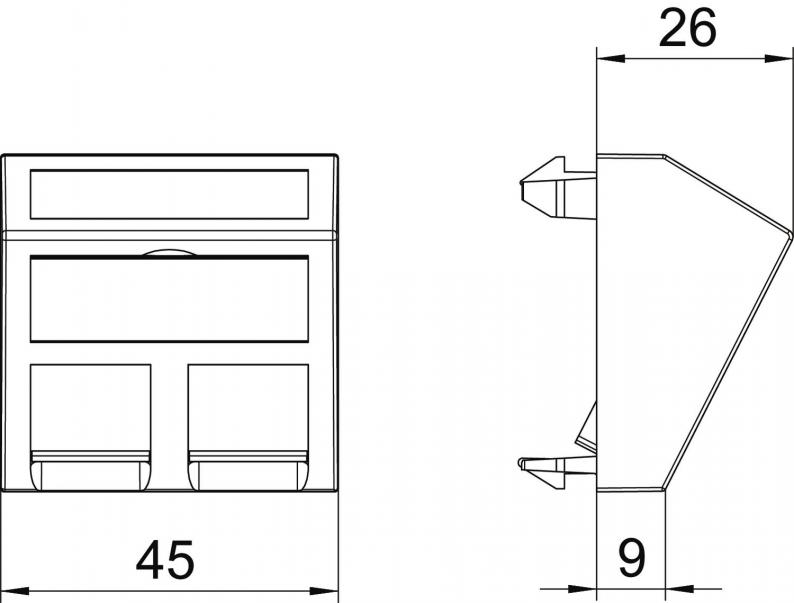

Dimensions
| Width | 45 mm |
|---|---|
| Height | 45 mm |
Technical data
| Hinged cover | no |
|---|---|
| Halogen-free | yes |
| Number of units | 1 |
| Strain relief option | no |
| Protection rating | IP20 |
| Support ring | no |
| With dust protection | yes |
| With printed label | no |
| Lamp-wire connector | no |
| Depth | 26 mm |
| Surface version | Matt |
| Transparent | no |
| Combination | Basic element with central cover plate |
| Use | Installable data connector |
| Labelling panel | With labelling panel |
| Fastening type | Lock |
| Mounting opening | Type EP |
| Dimension | 45x45mm |
| Material | Polycarbonate |
| Colour | Black-grey; RAL 7021 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1719 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
With dust protection
Colour
Item no.
DTS-2EP RW1
yes
Pure white; RAL 9010
6119268
DTS-2EP SWGR1
yes
Black-grey; RAL 7021
6119270
DTS-2EP AL1
yes
Aluminium painted
6119272
Colour
DTS-2EP RW1
Item no.
6119268
With dust protection
yes
Colour
Pure white; RAL 9010
DTS-2EP SWGR1
Item no.
6119270
With dust protection
yes
Colour
Black-grey; RAL 7021
DTS-2EP AL1
Item no.
6119272
With dust protection
yes
Colour
Aluminium painted
