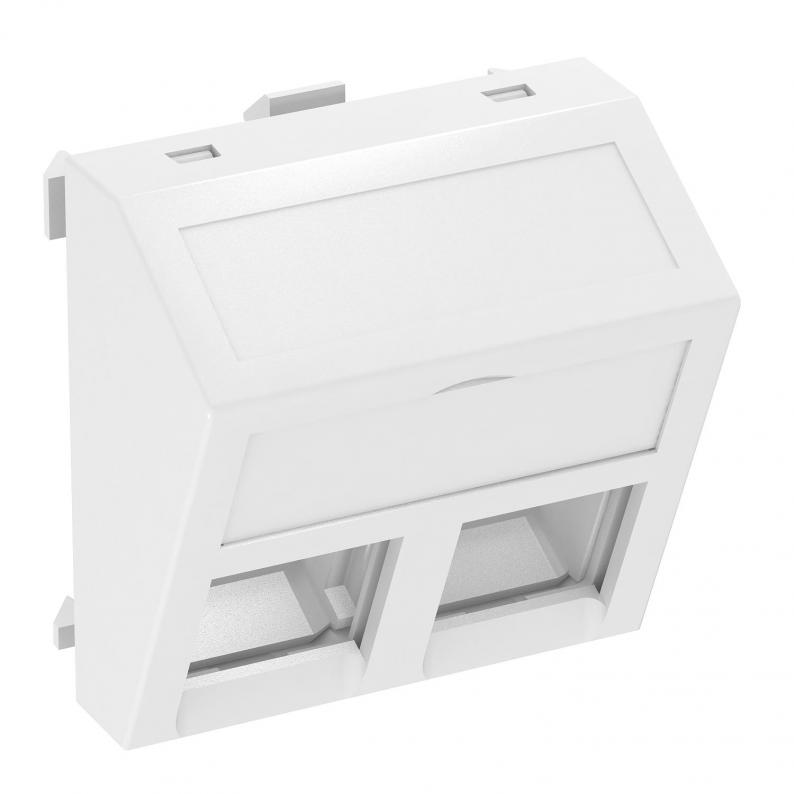

Data technology support, 1 module, slanting outlet, type C, without dust protection slider
Type DTS-02C RW1
|Item no. 6119286
|EAN 4012195887386
Item no. / Type
Colour
With dust protection
no
Smallest selling unit: 1 piece
1piece
piece
Description
Data technology support with slanting outlet and without a locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type C has a mounting opening of 19.30 x 14.80 mm and is designed for direct fastening of the data connection modules in the mounting opening.
The type C data technology support (without dust protection slider) is suitable for accepting the following data connection modules: 3M: Volition K6, K10 and Cat. 6A.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
The type C data technology support (without dust protection slider) is suitable for accepting the following data connection modules: 3M: Volition K6, K10 and Cat. 6A.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
Technical data

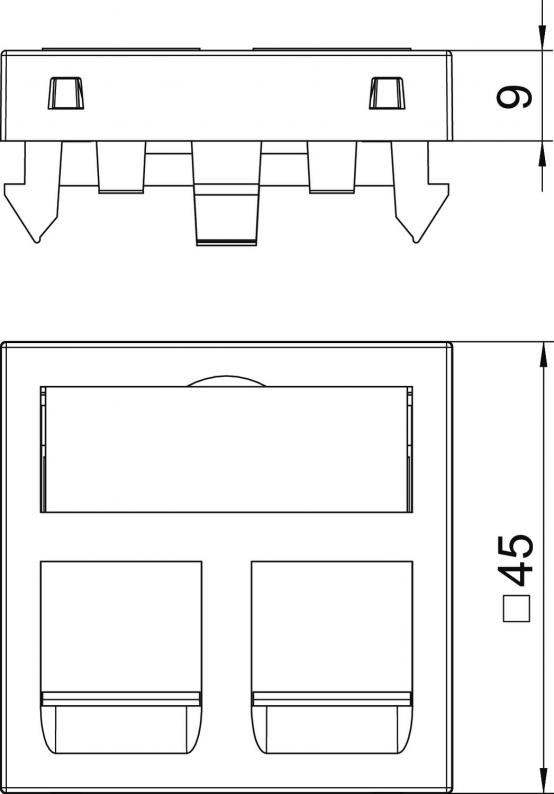

Dimensions
| Width | 45 mm |
|---|---|
| Height | 45 mm |
Technical data
| Hinged cover | no |
|---|---|
| Halogen-free | yes |
| Number of units | 1 |
| Strain relief option | no |
| Protection rating | IP20 |
| Support ring | no |
| With dust protection | no |
| With printed label | no |
| Lamp-wire connector | no |
| Depth | 26 mm |
| Surface version | Matt |
| Transparent | no |
| Combination | Basic element with central cover plate |
| Use | Installable data connector |
| Labelling panel | With labelling panel |
| Fastening type | Lock |
| Mounting opening | Type C |
| Dimension | 45x45mm |
| Material | Polycarbonate |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1698 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
With dust protection
Colour
Item no.
DTS-02C RW1
no
Pure white; RAL 9010
6119286
DTS-02C SWGR1
no
Black-grey; RAL 7021
6119288
DTS-02C AL1
no
Aluminium painted
6119290
Colour
DTS-02C RW1
Item no.
6119286
With dust protection
no
Colour
Pure white; RAL 9010
DTS-02C SWGR1
Item no.
6119288
With dust protection
no
Colour
Black-grey; RAL 7021
DTS-02C AL1
Item no.
6119290
With dust protection
no
Colour
Aluminium painted
