Cross-over 60 FT
Type RK 650 FT | Item no. 7113501 | EAN 4012196243792
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

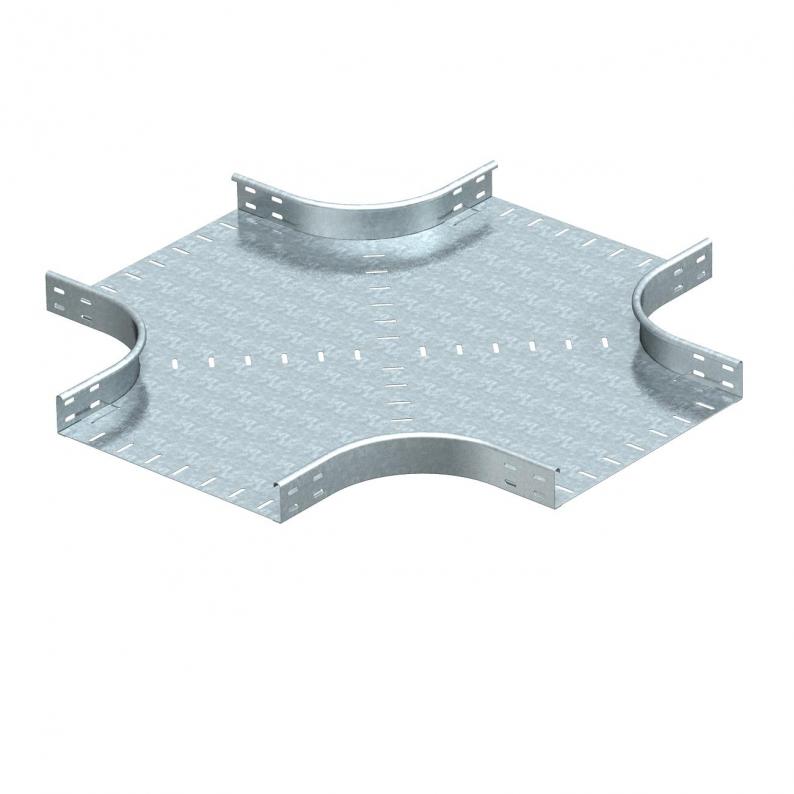

Horizontal cross-over for all cable tray types of 60 mm side height.
Fitting in round design. The interior radius of the fitting is 150 mm. All the sides are designed for the same cable tray width.
Fastening materials should be ordered separately.
Technical data

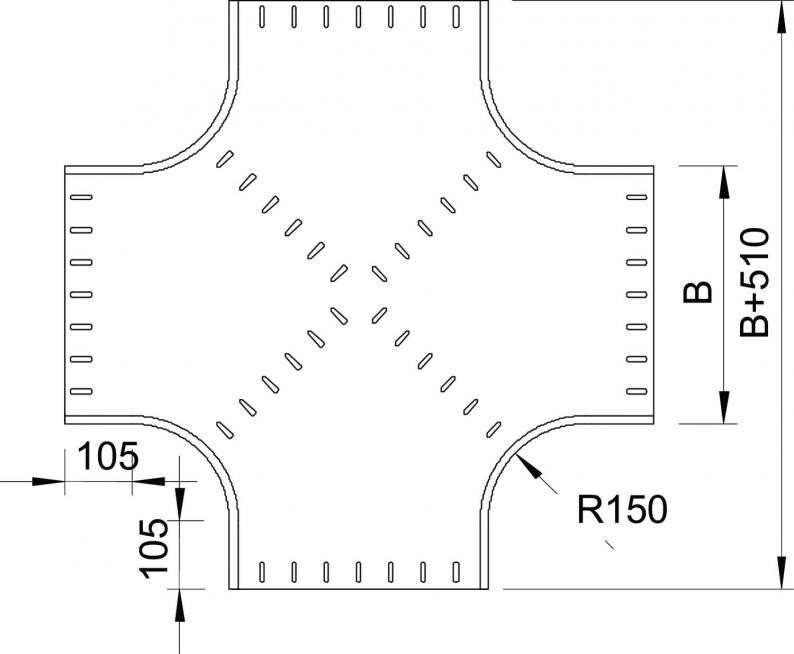

Dimensions
| Width | 500 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 500 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Material thickness, floor plate | 1,5 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x500 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Item no.
RK 640 FT
400
7113404
RK 650 FT
500
7113501
RK 660 FT
600
7113609
RK 675 FT
750
7113611
RK 690 FT
900
7113613
Width
RK 640 FT
Item no.
7113404
Width
400
RK 650 FT
Item no.
7113501
Width
500
RK 660 FT
Item no.
7113609
Width
600
RK 675 FT
Item no.
7113611
Width
750
RK 690 FT
Item no.
7113613
Width
900
