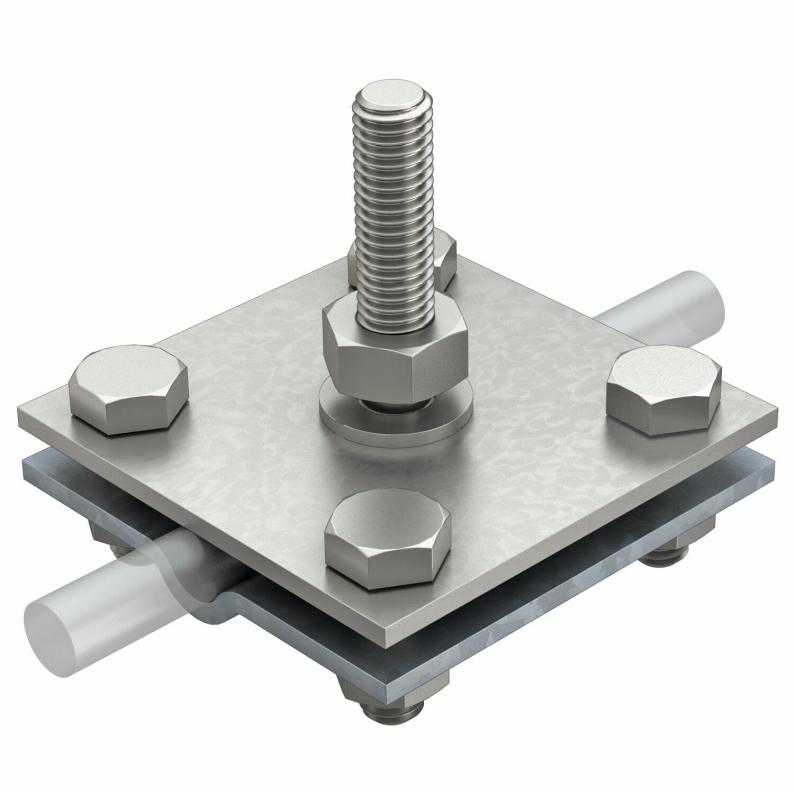

Cross-connector for flat conductors and round cables with threaded bolt M10x45
Type 252 GB 10x45
|Item no. 5312657
|EAN 4012196454563
Item no. / Type
5312657 / 252 GB 10x45
Surface
Hot-dip galvanised/stainless steel, grade 1.4301
Smallest selling unit: 10 piece
10piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x FL 30
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
• Fit: Rd 8-10 x FL 30
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
Technical data

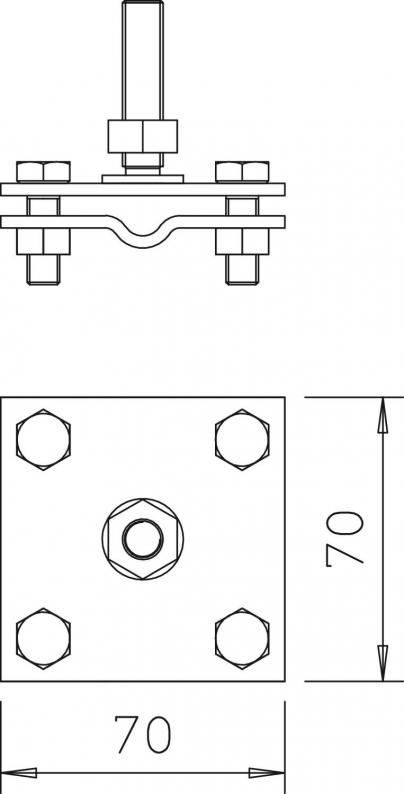

Dimensions
| Length | 70 mm |
|---|---|
| Width | 70 mm |
| Height | 55 mm |
| Dimension A | 70 mm |
| Dimension B | 70 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Cross-connectors |
| Suitable for connection | Round conductor Rd 8-10 / flat conductor Fl 30 |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 4,2 kA |
| Lightning current carrying capacity | H/100 kA |
| Fit | Rd 8-10/FL30 mm |
| Dimension | 8-10mm |
| Surface | Hot-dip galvanised/stainless steel, grade 1.4301 |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8194 kg CO2e / 1 Piece |
