Cross-connector 250 VA
Type 250 VA-FR
|Item no. 5312930
|EAN 4012195103158
Item no. / Type
5312930 / 250 VA-FR
Smallest selling unit: 25 piece
25piece
piece
Description

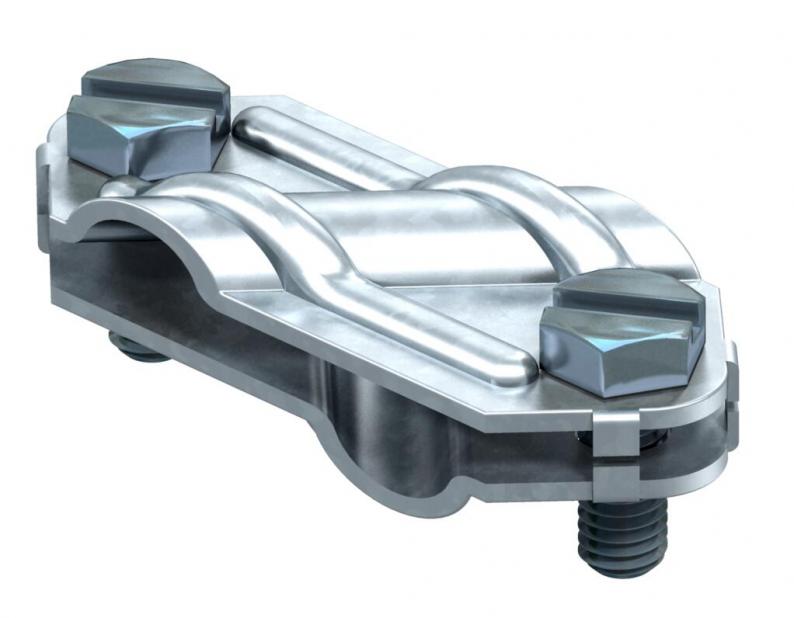

Cross-connector to connect round and flat conductors. Conforms to the requirements according to VDE 0185-305-3 (IEC/EN 62305-3). Mounted with 2 hexagonal bolts.
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Cross-connectors |
| Lightning current carrying capacity | H/100 kA |
| Fit | Rd 8-10/FL30 mm |
| Dimension | 8-10xFL30 |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5054 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
