Cover with turn buckle 1,5 mm FT
Type DRL 1,5 200 FT | Item no. 6051370 | EAN 4012196190539
Item no. / Type
Length
Width
Plate thickness
This item is a discontinued product!
Smallest selling unit: 3 m
3m
Description
Cover for cable trays and cable ladders with three pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken. Cover clamps or turn buckles on their own are not sufficient securing elements against wind loads.
When using covers outdoors, additional measures against the influence of wind must be taken. Cover clamps or turn buckles on their own are not sufficient securing elements against wind loads.
Transverse bead from 500 mm width.
Technical data

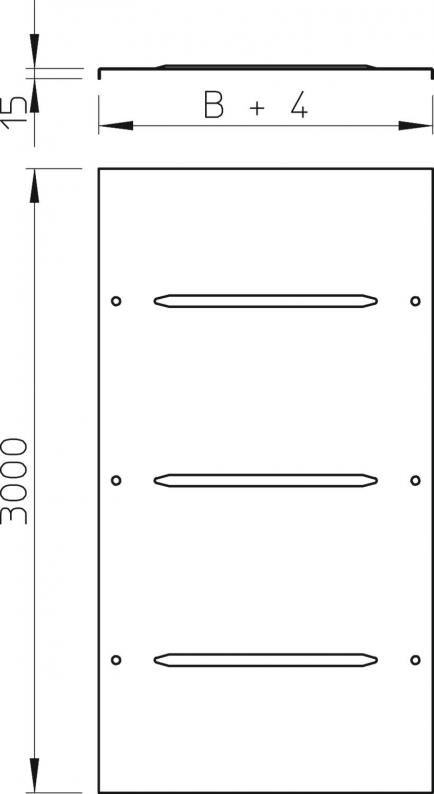

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | 200x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Plate thickness
Item no.
DRL 1,5 200 FT
3000
200
1,5
6051370
DRL 1,5 300 FT
3000
300
1,5
6051387
Width
DRL 1,5 200 FT
Item no.
6051370
Length
3000
Width
200
Plate thickness
1,5
DRL 1,5 300 FT
Item no.
6051387
Length
3000
Width
300
Plate thickness
1,5
