Cover support 110 FS
Type DST110 BKRS FS | Item no. 6049256 | EAN 4012196147786
Item no. / Type
6049256 / DST110 BKRS FS
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
Description

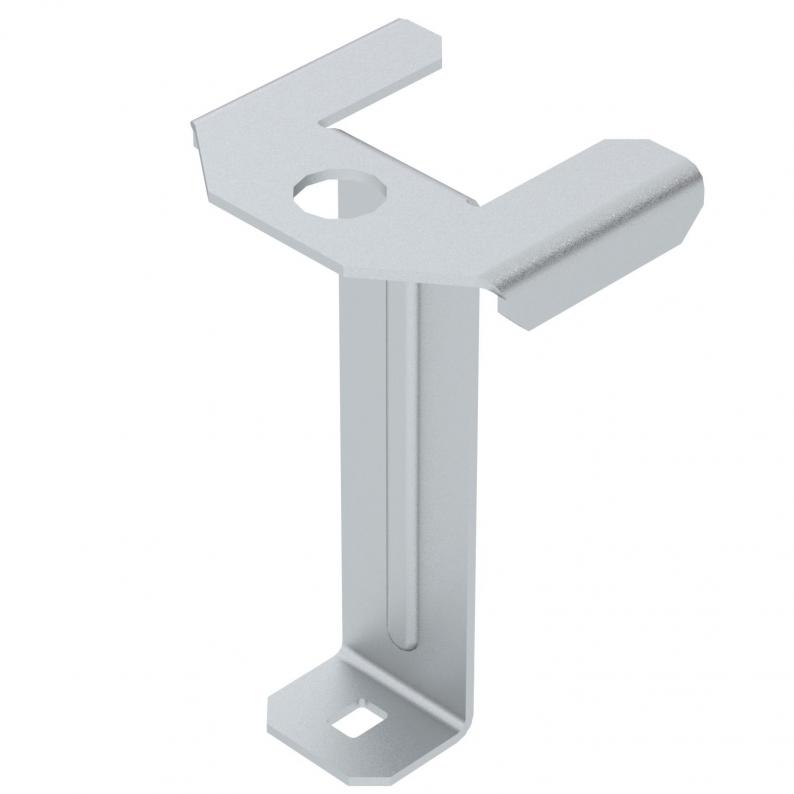

Cover support for the walkable BKRS cable tray system, for additional support of covers at a side height of 110 mm.
Technical data

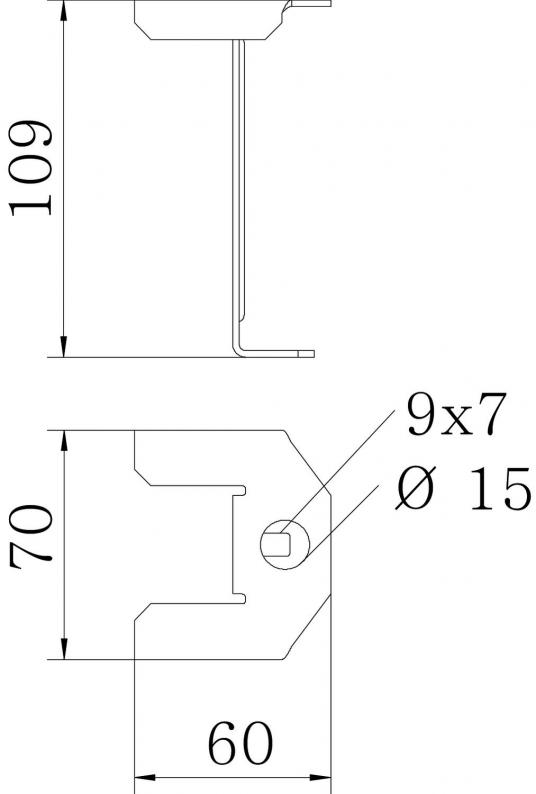

Dimensions
| Length | 60 mm |
|---|---|
| Width | 70 mm |
| Height | 109 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| With screw accessories | no |
| Dimension | 110x70 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5149 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Height
Item no.
DST110 BKRS FS
60
70
109
6049256
DST110 BKRS FS
Item no.
6049256
Length
60
Width
70
Height
109
