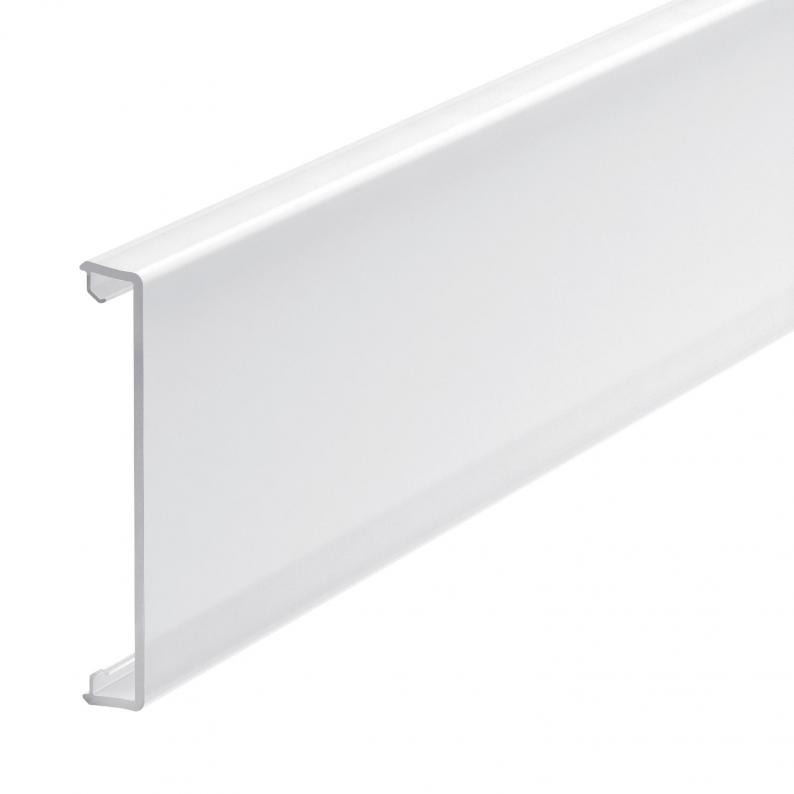

Cover Rapid 80, opal, smooth
Type GK-OTGO
|Item no. 6278690
|EAN 4012196036233
Item no. / Type
6278690 / GK-OTGO
Colour
Transparent
Smallest selling unit: 2 m
2m
m
Description
Trunking cover for closing Rapid 80 GK (PVC), GS (steel) and GA (aluminium) device installation trunking as well as ISS service poles with a 76.5 mm system opening. The GK-OTGO cover is made from translucent but milky plastic (looking like cut glass) and is therefore suitable for integrating lighting in the trunking or service poles.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Halogen-free | no |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Version for | Smooth |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 80x2000mm |
| Material | Polycarbonate |
| Colour | Transparent |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8038 kg CO2e / 1 Meter |
