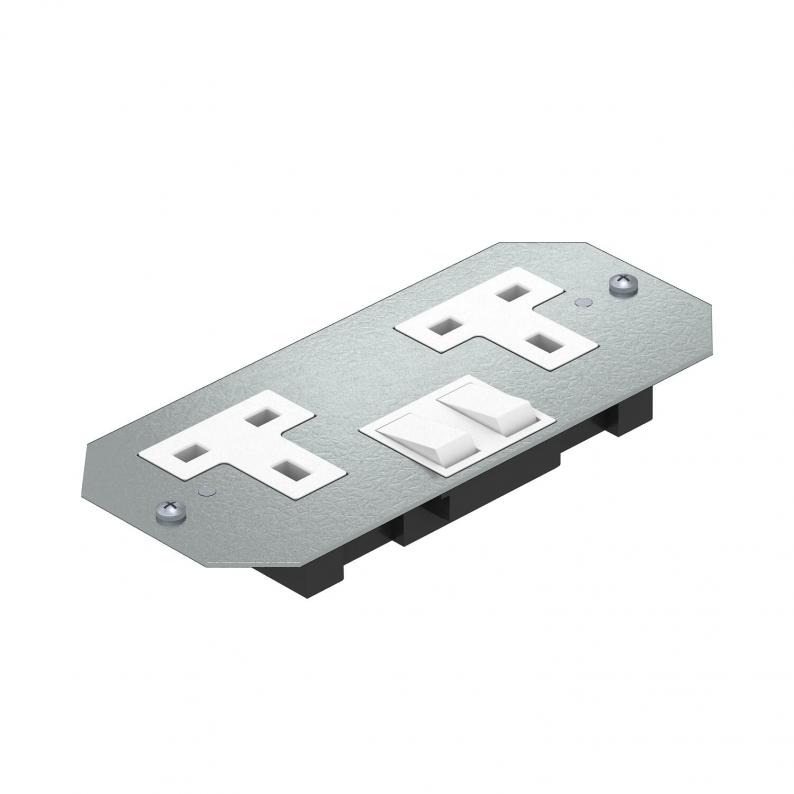

Cover plate APMT2 with double socket
Type AP MT2 BS 2SS0
|Item no. 7407872
|EAN 4012195774112
Item no. / Type
7407872 / AP MT2 BS 2SS0
Smallest selling unit: 4 piece
4piece
piece
Description
Cover plate with a switched double socket for installation in mounting supports beneath GES service outlets and cassettes.
Socket with increased contact protection with screw connection, 3-pole, 13 A, 250 V~, corresponds to BS 1363.
Socket with increased contact protection with screw connection, 3-pole, 13 A, 250 V~, corresponds to BS 1363.
Technical data
Dimensions
| Length | 163 mm |
|---|
Technical data
| Surface | Strip galvanised/organically coated |
|---|---|
| Material | Steel |
| Colour | Grey-white; RAL 9002 |
Environmental Data
0,5051 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5051 kg CO2e / 1 Piece |
|---|
