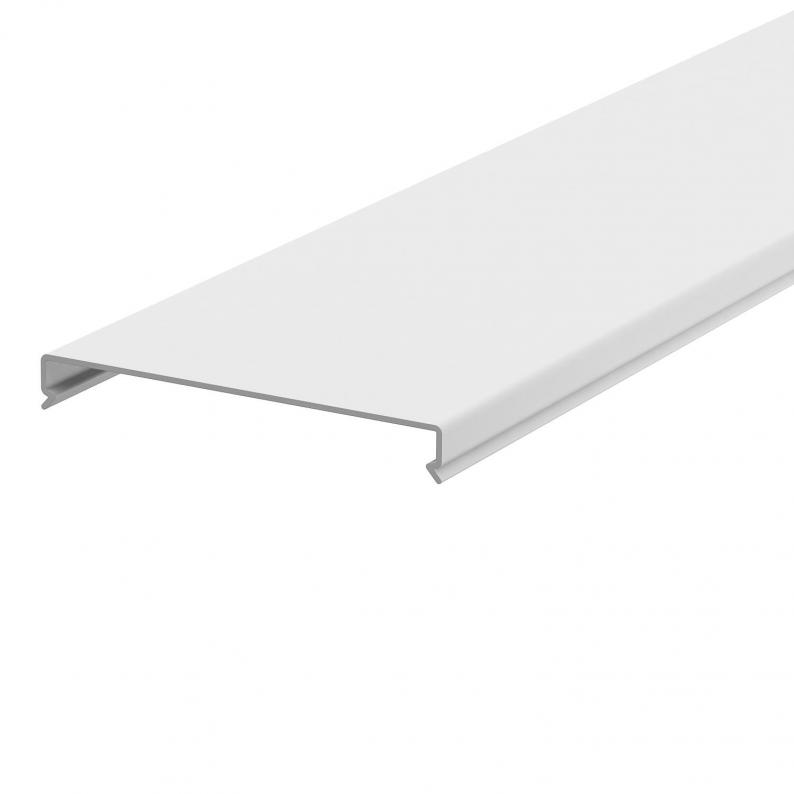

Cover LKVH D 125

Cover LKVH D 125

Type LKVH D 125 | Item no. 6178686 | EAN 4012195981497

Show all variants
Item no. / Type
6178686 / LKVH D 125

Smallest selling unit: 16 m

DescriptionTechnical dataDownloadsVariants

Description

Trunking cover for replacement requirements.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length2000 mm
Width125 mm

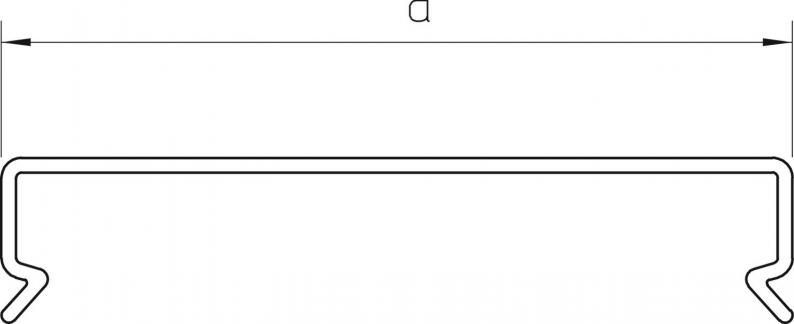

Dimension a125 mm

Technical data

Halogen-freeyes
Self-extinguishingyes
Permitted temperature range, max.90 °C
Permitted temperature range, min.-25 °C
Dimension125x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate2,2655 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

LKVH D 125
Item no.
6178686
Length
2000
