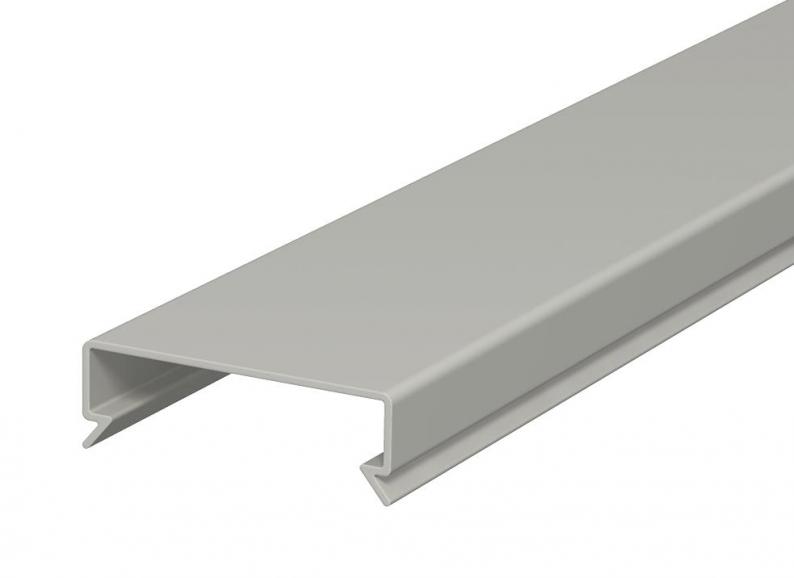

Cover LK4 D 80
Type LK4 D 80 | Item no. 6178488 | EAN 4012196040681
Item no. / Type
6178488 / LK4 D 80
Smallest selling unit: 2 m
2m
Description
Trunking cover for replacement requirements.
Flushfloor design with predetermined break points
Flushfloor design with predetermined break points
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 80 mm |

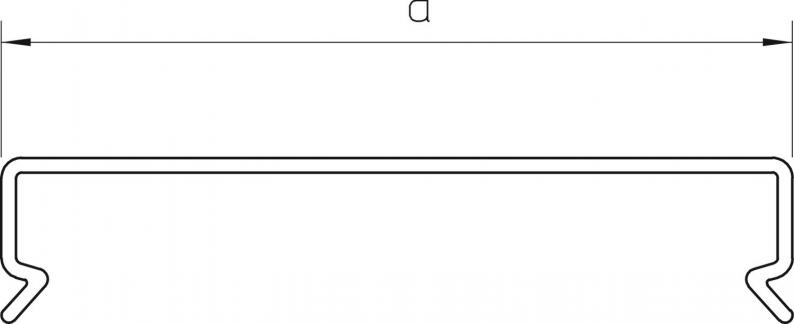

| Dimension a | 87 mm |
Technical data
| Halogen-free | no |
|---|---|
| Self-extinguishing | yes |
| for duct width | 80 mm |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 80mm |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6145 kg CO2e / 1 Meter |
