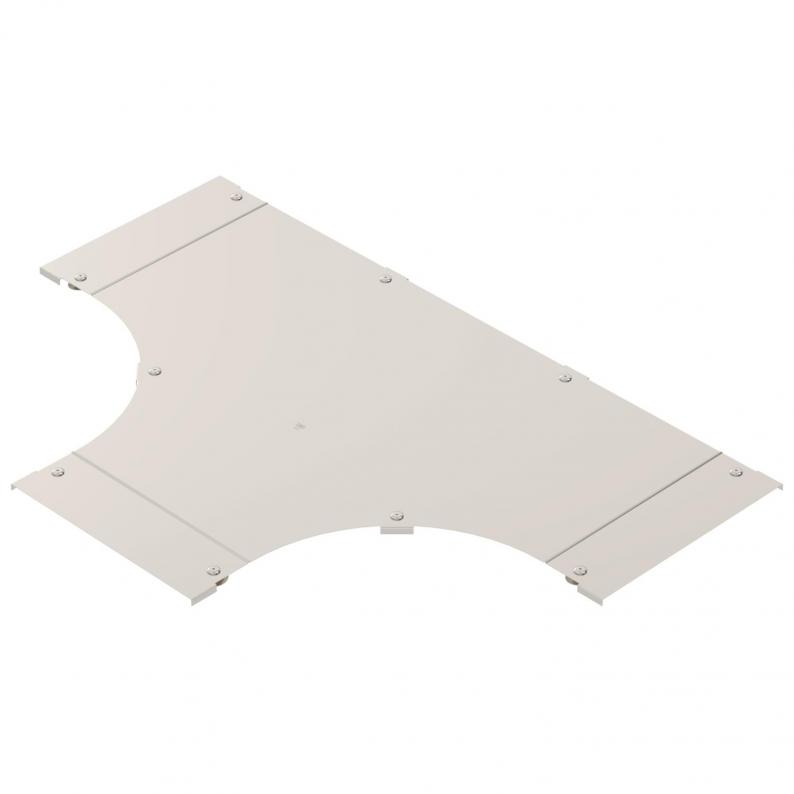

Cover for tee A2
Type LTD 500 R3 A2 | Item no. 6226166 | EAN 4012196535965
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description
Cover with turn buckles for covering T pieces with welded rungs.
Technical data

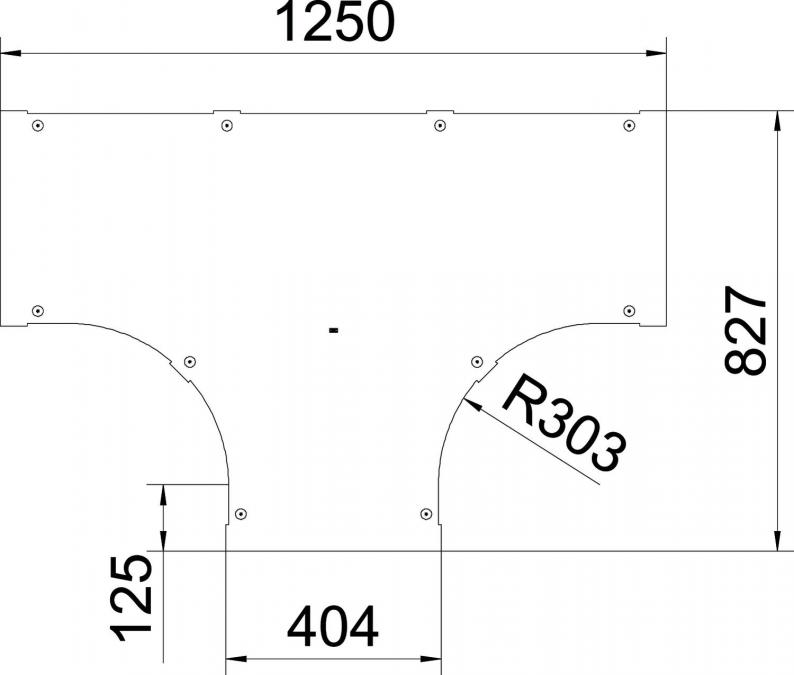

Dimensions
| Width | 500 mm |
|---|---|
| Dimension B | 500 mm |
Technical data
| Wide-span version | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | no |
| Fastening type | Sash lock |
| Dimension | B500 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
LTD 500 R3 A2
500
1,25
6226166
LTD 600 R3 A2
600
1,25
6226168
Width
LTD 500 R3 A2
Item no.
6226166
Width
500
Plate thickness
1,25
LTD 600 R3 A2
Item no.
6226168
Width
600
Plate thickness
1,25
