Cover for T branch piece DD
Type DFT 400 DD | Item no. 7129386 | EAN 4012196250516
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

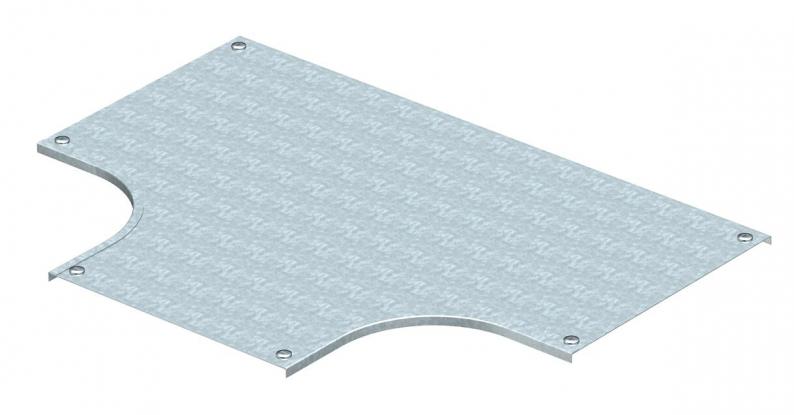

Cover for tee with pre-mounted turn buckle.
The cover can be used with fittings of all side heights.
Technical data

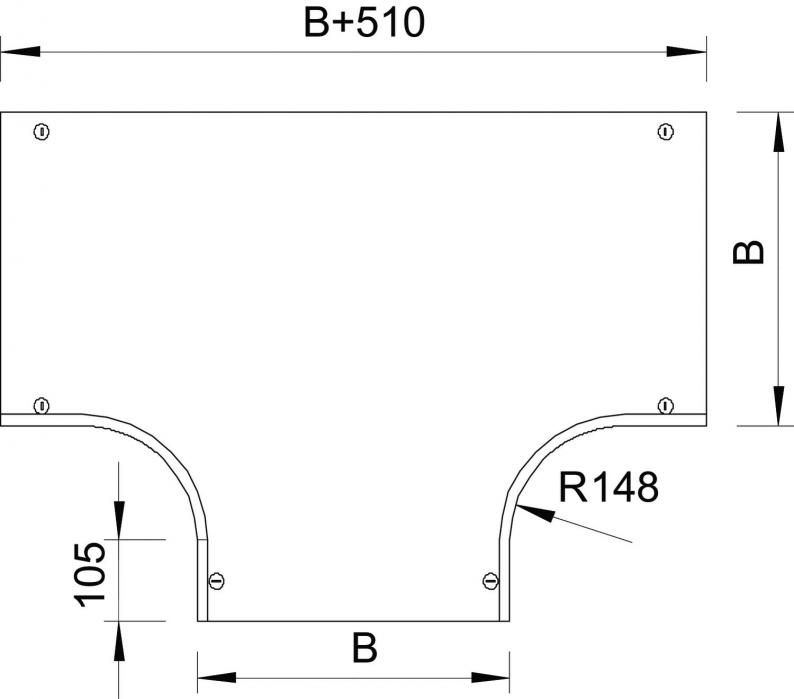

Dimensions
| Width | 400 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 400 mm |
| Dimension H | 15 mm |
| Dimension R | 148 mm |
Technical data
| Wide-span version | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Number of turn buckles | 6 St. |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B400mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFT 400 DD
400
1,25
7129386
DFT 500 DD
500
1,25
7129408
DFT 550 DD
550
1,25
7129416
DFT 600 DD
600
1,25
7129424
DFT 750 DD
750
1,25
7129427
DFT 900 DD
900
1,25
7129433
Width
DFT 400 DD
Item no.
7129386
Width
400
Plate thickness
1,25
DFT 500 DD
Item no.
7129408
Width
500
Plate thickness
1,25
DFT 550 DD
Item no.
7129416
Width
550
Plate thickness
1,25
DFT 600 DD
Item no.
7129424
Width
600
Plate thickness
1,25
DFT 750 DD
Item no.
7129427
Width
750
Plate thickness
1,25
DFT 900 DD
Item no.
7129433
Width
900
Plate thickness
1,25
