Cover for T branch piece DD
Type WDTRL 300 DD | Item no. 6231675 | EAN 4012196504671
Item no. / Type
Width
Plate thickness
Smallest selling unit: 1 piece
1piece
Description

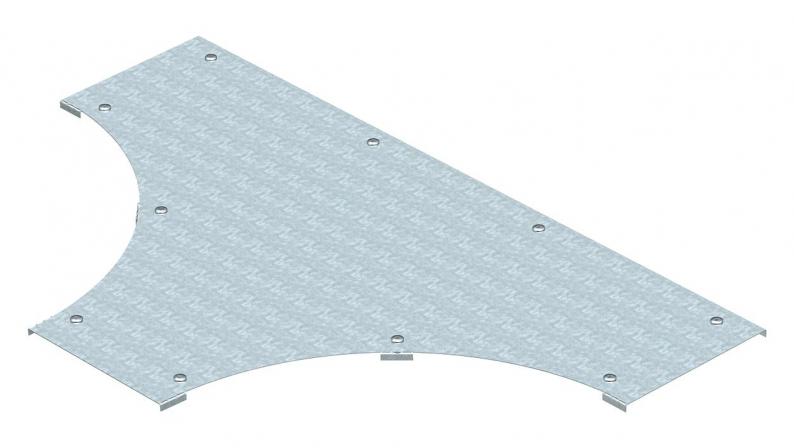

Cover for wide span T branch piece with pre-mounted turn buckles.
As the connector is mounted from the outside, the fitting cover is 300 mm shorter than the corresponding fitting. This must be considered when installing the track elements.
Technical data

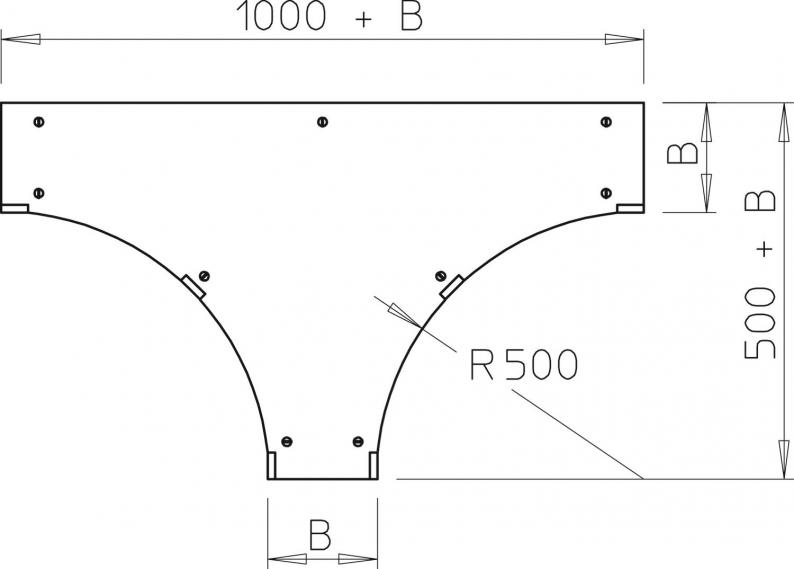

Dimensions
| Width | 300 mm |
|---|---|
| Dimension B | 300 mm |
| Dimension H | 15 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Number of turn buckles | 9 St. |
| Material thickness | 1 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B300mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 24,5178 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
WDTRL 200 DD
200
1
6231667
WDTRL 300 DD
300
1
6231675
WDTRL 400 DD
400
1
6231683
WDTRL 500 DD
500
1,25
6231691
WDTRL 600 DD
600
1,25
6231705
