Cover for DD mounting/branch piece

Cover for DD mounting/branch piece

Type WAAD 200 DD | Item no. 6231922 | EAN 4012196080717

Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

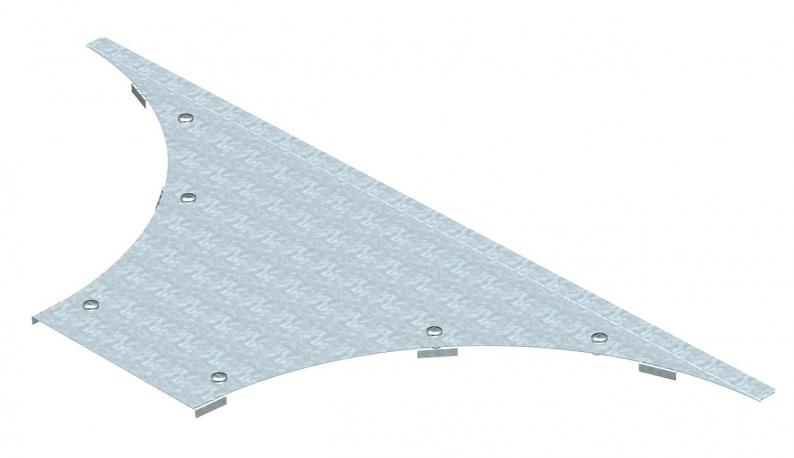

Cover for wide span add-on tee with pre-mounted turn buckles.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 110 mm
  • Wide span cable tray, side height, 160 mm
  • CO₂ footprint (PCF)

Technical data

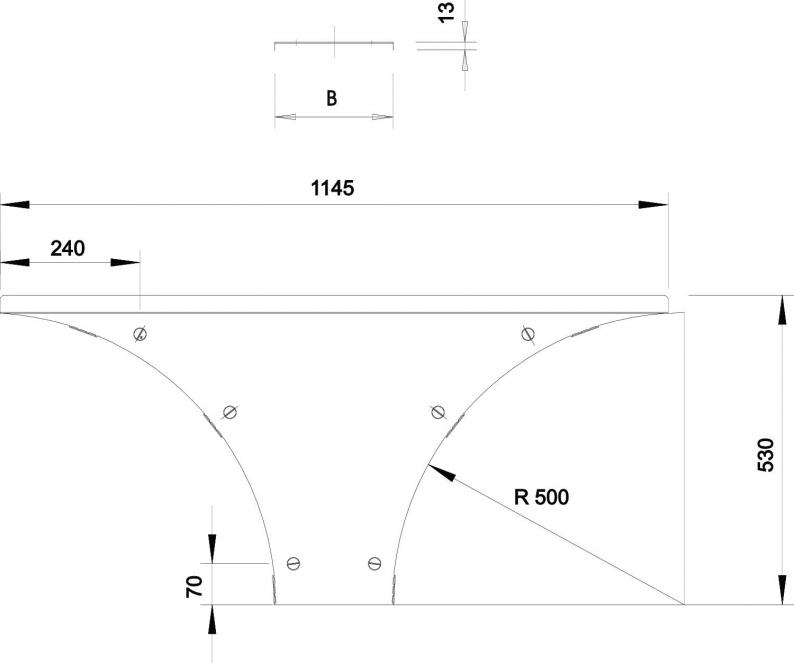

Dimensions

Width200 mm
Height110 mm
Dimension B200 mm
Dimension H15 mm
Dimension R500 mm

Technical data

Wide-span versionyes
Rustproof steel, pickledno
Plate thickness1,5 mm
Number of turn buckles6 St.
Material thickness1,5 mm
Suitable for cable ladderyes
Suitable for cable trayyes
Fastening typeSash lock
DimensionB200mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate10,9557 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
WAAD 200 DD
Item no.
6231922
Width
200
Plate thickness
1,5
WAAD 300 DD
Item no.
6231926
Width
300
Plate thickness
1,5
WAAD 400 DD
Item no.
6231930
Width
400
Plate thickness
1,5
WAAD 500 DD
Item no.
6231934
Width
500
Plate thickness
1,5
WAAD 600 DD
Item no.
6231938
Width
600
Plate thickness
1,5
