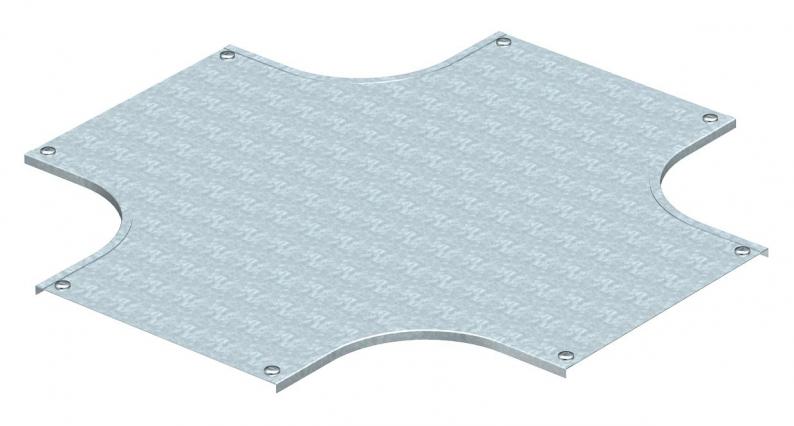

Cover for cross-over DD
Type DFK 500 DD | Item no. 7131178 | EAN 4012196251957
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
Cover for cross-over with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

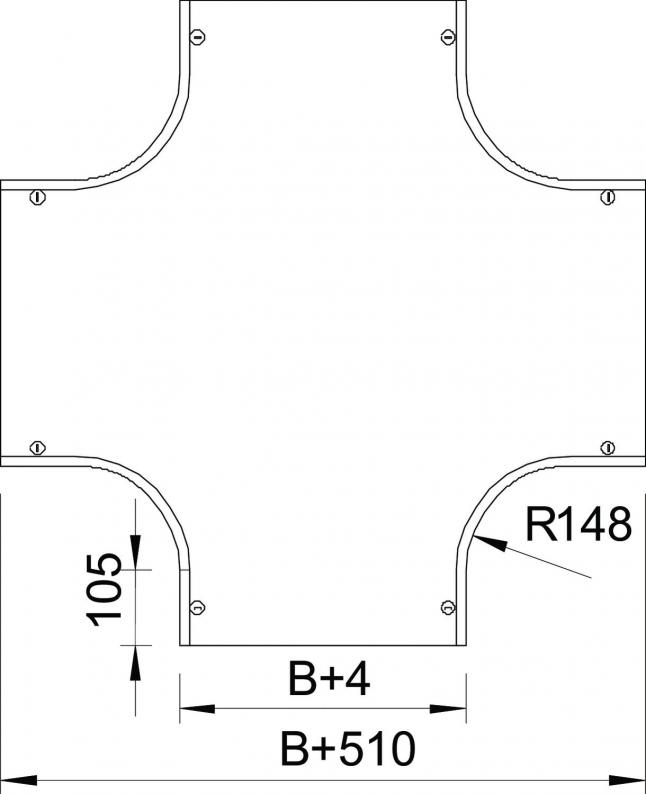

Dimensions
| Width | 500 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 500 mm |
| Dimension H | 15 mm |
| Dimension R | 148 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Number of turn buckles | 8 St. |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B500mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Item no.
DFK 500 DD
500
7131178
DFK 600 DD
600
7131194
DFK 750 DD
750
7131197
DFK 900 DD
900
7131203
Width
DFK 500 DD
Item no.
7131178
Width
500
DFK 600 DD
Item no.
7131194
Width
600
DFK 750 DD
Item no.
7131197
Width
750
DFK 900 DD
Item no.
7131203
Width
900
