Cover for articulated bend element FT

Cover for articulated bend element FT

Type LGBED 200 FT | Item no. 6226230 | EAN 4012196536122

Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

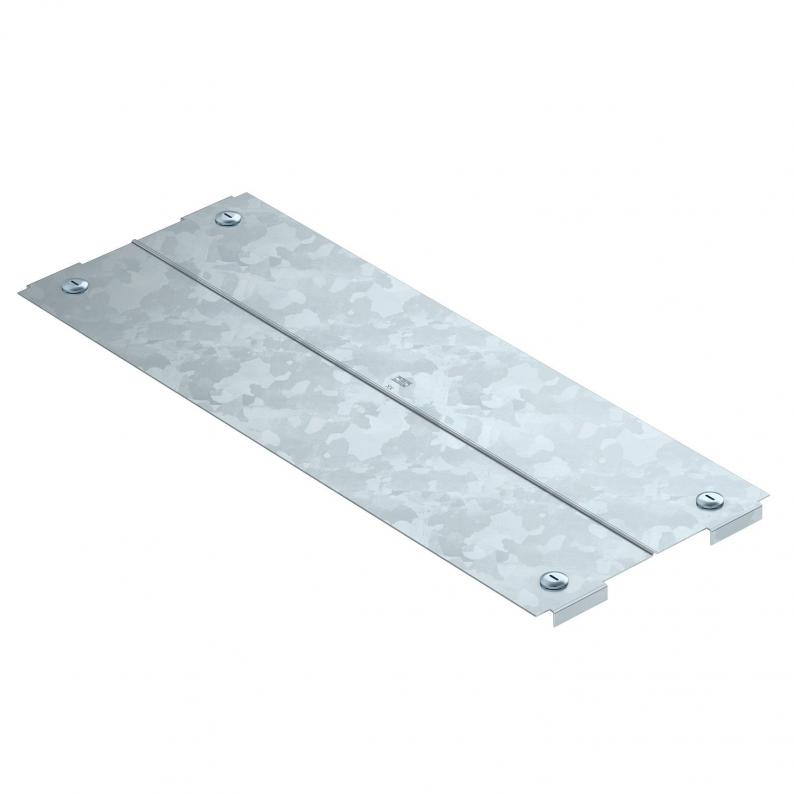

Cover with sash locks for covering adjustable bends with welded rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

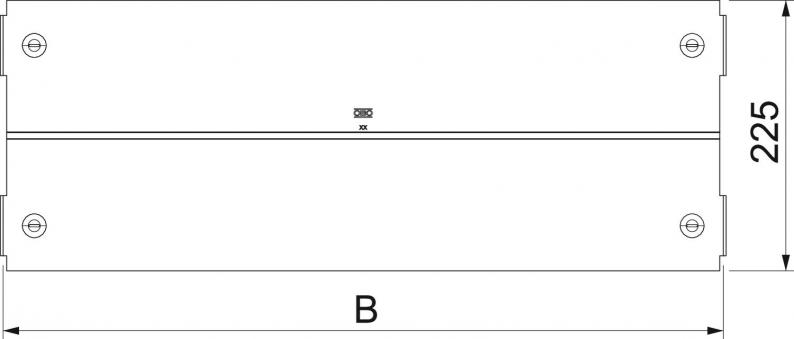

Dimensions

Width200 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1 mm
Bend (angle)Adjustable
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayno
Hingedno
Change of directionVertical, rising/falling
Fastening typeSash lock
DimensionB200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate1,7696 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
Plate thickness
LGBED 200 FT
Item no.
6226230
Width
200
Plate thickness
1
LGBED 300 FT
Item no.
6226232
Width
300
Plate thickness
1
LGBED 400 FT
Item no.
6226234
Width
400
Plate thickness
1
LGBED 450 FT
Item no.
6226236
Width
450
Plate thickness
1,25
LGBED 500 FT
Item no.
6226238
Width
500
Plate thickness
1,25
LGBED 600 FT
Item no.
6226240
Width
600
Plate thickness
1,25
LGBED 750 FT
Item no.
6226242
Width
750
Plate thickness
1,25
LGBED 800 FT
Item no.
6226244
Width
800
Plate thickness
1,25
LGBED 900 FT
Item no.
6226246
Width
900
Plate thickness
1,25
LGBED 1000 FT
Item no.
6226248
Width
1000
Plate thickness
1,25
LGBED 1200 FT
Item no.
6226252
Width
1200
Plate thickness
1,25
