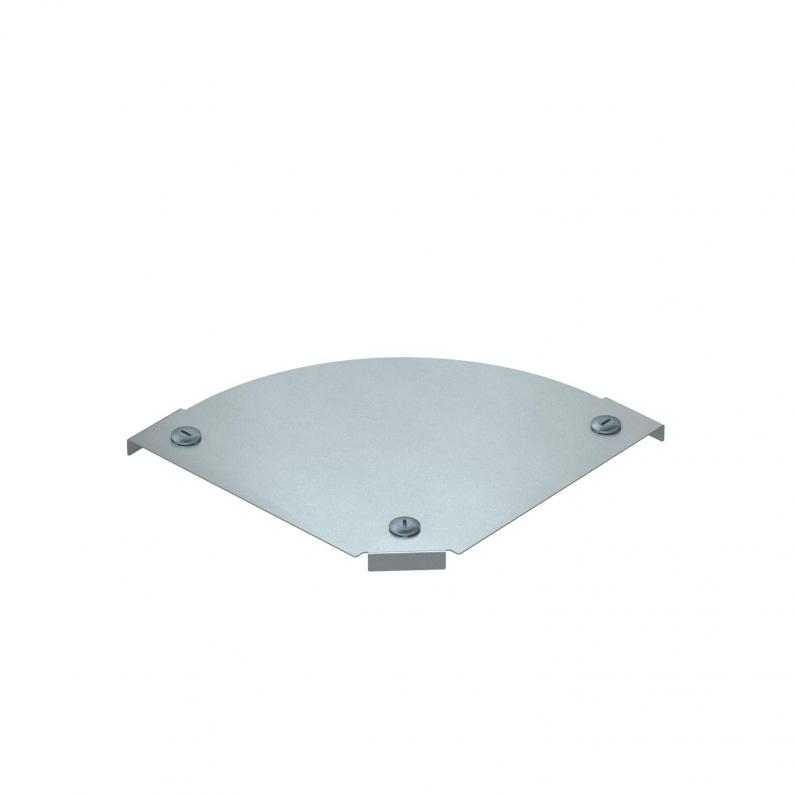

Cover for 90° Magic bend DD

Type DFBM 90 200 DD
Item no. 7138544
EAN 4012195929215
Item no. / Type
7138544 / DFBM 90 200 DD
Width
200 mm
Plate thickness
1,25 mm

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

Cover for 90° bend with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm

Technical data

Dimensions

Width200 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1,25 mm
Bend (angle)90°
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Hingedno
Change of directionHorizontal
Fastening typeSash lock
ROHS-conformantyes
DimensionB=200mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc
