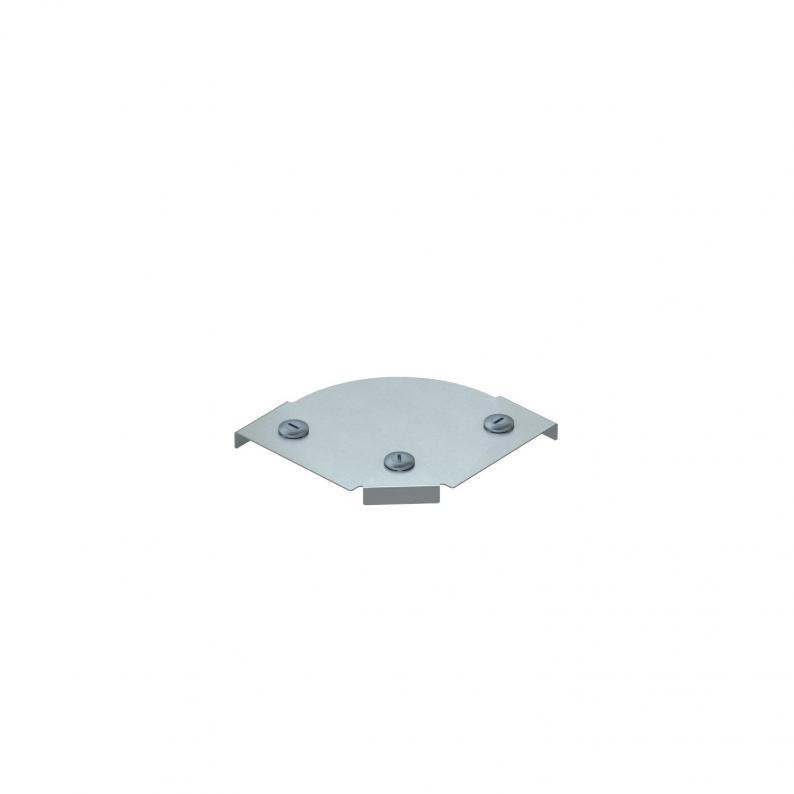

Cover for 90° Magic bend DD

Cover for 90° Magic bend DD

Type DFBM 90 100 DD | Item no. 7138540 | EAN 4012195929192

Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Cover for 90° bend with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1,25 mm
Bend (angle)90°
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Hingedno
Change of directionHorizontal
Fastening typeSash lock
DimensionB=100mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate8,8723 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
DFBM 90 100 DD
Item no.
7138540
Width
100
Plate thickness
1,25
DFBM 90 200 DD
Item no.
7138544
Width
200
Plate thickness
1,25
DFBM 90 300 DD
Item no.
7138546
Width
300
Plate thickness
1,25
DFBM 90 400 DD
Item no.
7138548
Width
400
Plate thickness
1,25
DFBM 90 500 DD
Item no.
7138550
Width
500
Plate thickness
1,25
