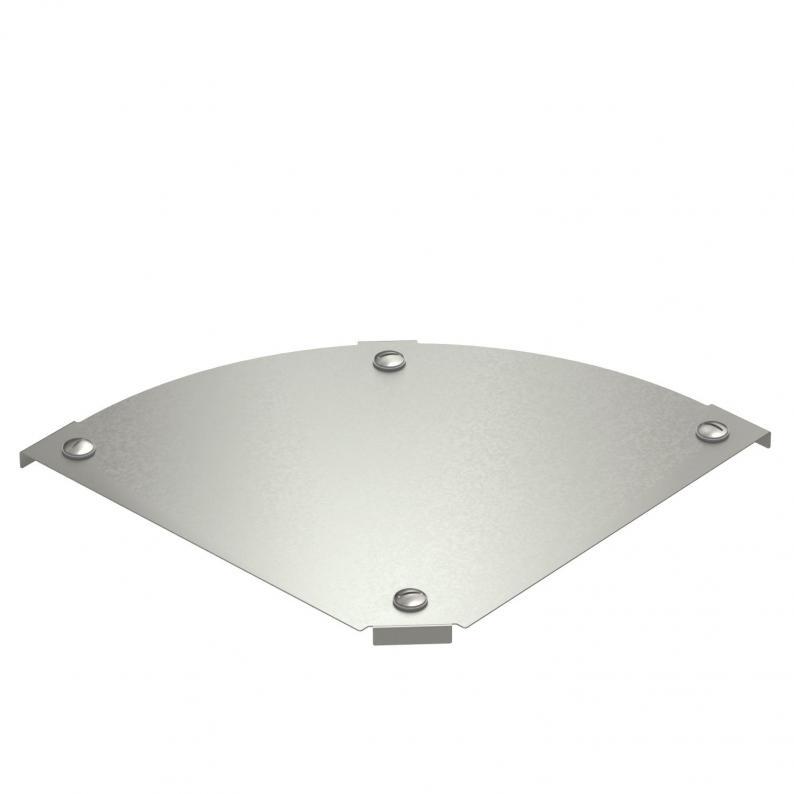

Cover for 90° Magic bend A4
Type DFBM 90 300 A4 | Item no. 7138596 | EAN 4012195929369
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
Cover for 90° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

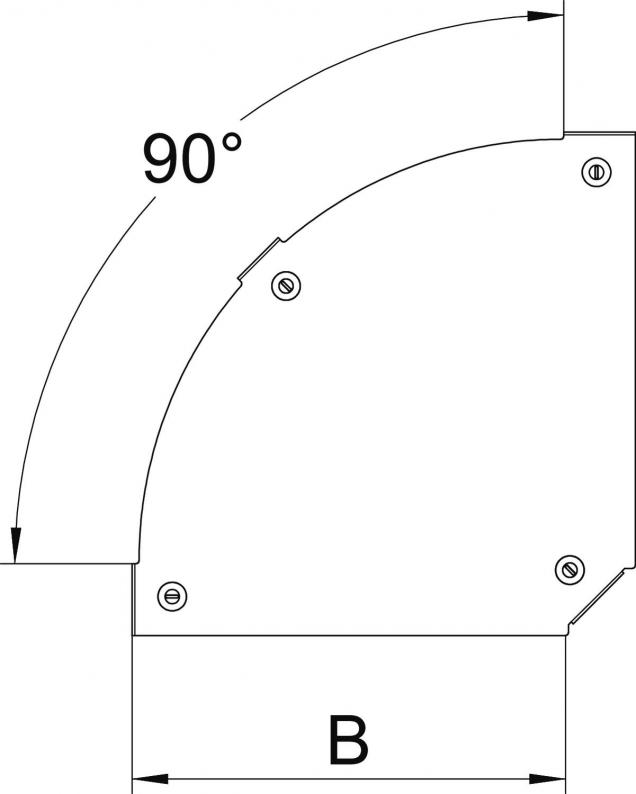

Dimensions
| Width | 300 mm |
|---|---|
| Dimension B | 300 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Dimension | B=300mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFBM 90 200 A4
200
1,25
7138594
DFBM 90 300 A4
300
1,25
7138596
DFBM 90 400 A4
400
1,25
7138598
Width
DFBM 90 200 A4
Item no.
7138594
Width
200
Plate thickness
1,25
DFBM 90 300 A4
Item no.
7138596
Width
300
Plate thickness
1,25
DFBM 90 400 A4
Item no.
7138598
Width
400
Plate thickness
1,25
