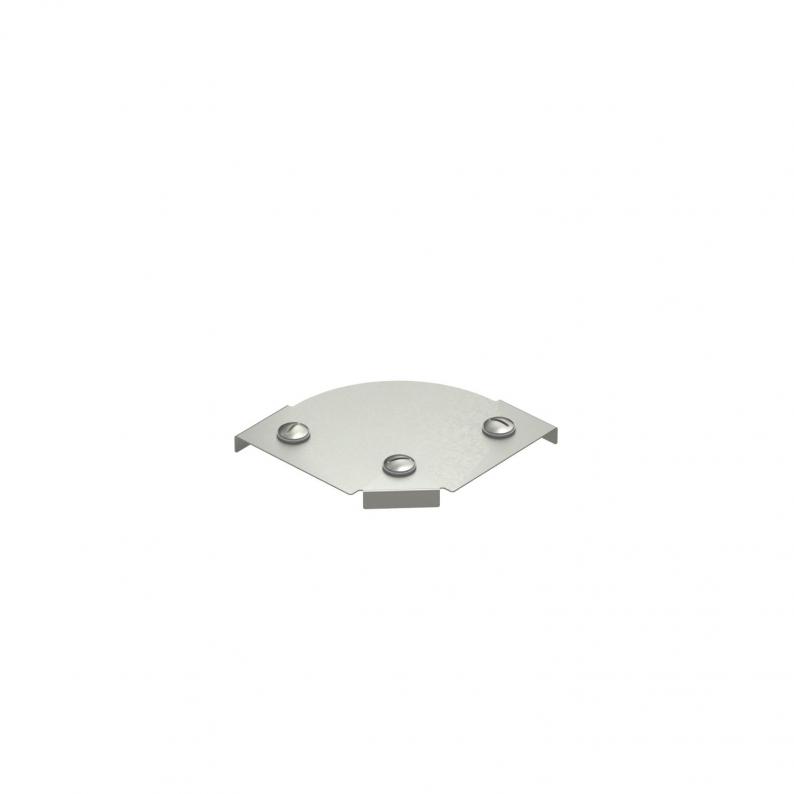

Cover for 90° Magic bend A2
Type DFBM 90 100 A2 | Item no. 7138570 | EAN 4012195929260
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
Cover for 90° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Dimension | B=100mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFBM 90 100 A2
100
1,25
7138570
DFBM 90 200 A2
200
1,25
7138574
DFBM 90 300 A2
300
1,25
7138576
Width
DFBM 90 100 A2
Item no.
7138570
Width
100
Plate thickness
1,25
DFBM 90 200 A2
Item no.
7138574
Width
200
Plate thickness
1,25
DFBM 90 300 A2
Item no.
7138576
Width
300
Plate thickness
1,25
