Cover for 90° bend DD
Type DFB 90 500 DD | Item no. 7130600 | EAN 4012196251476
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

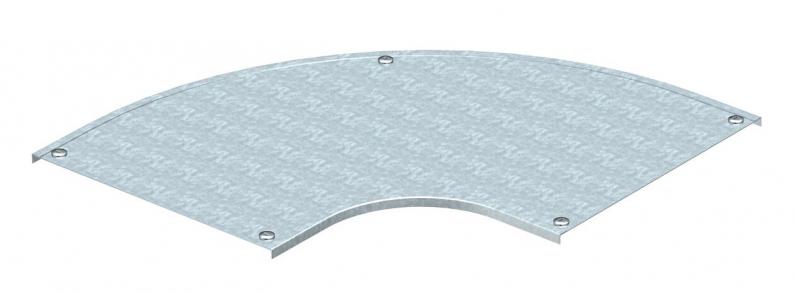

Cover for 90° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

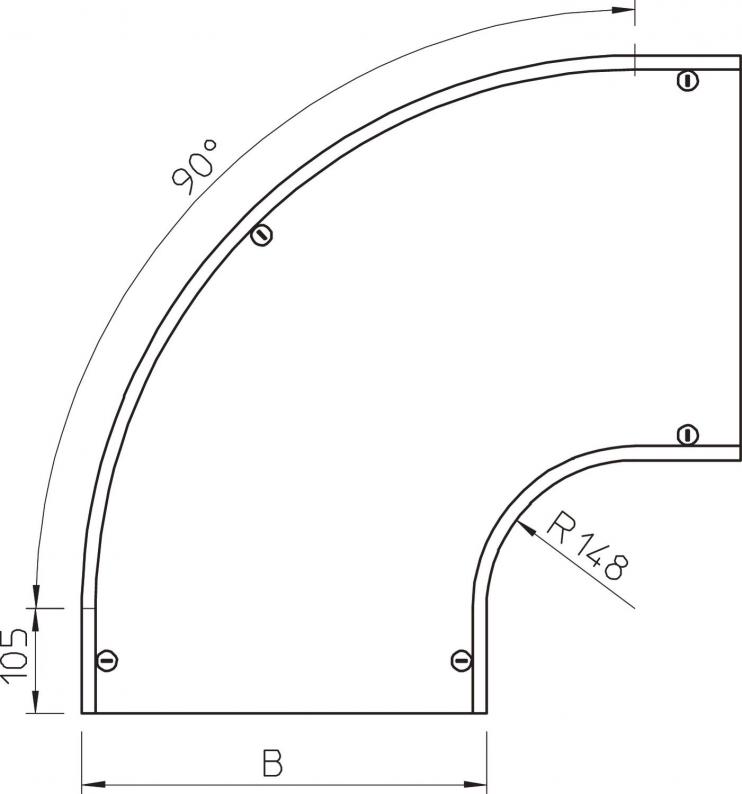

Dimensions
| Width | 500 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 500 mm |
| Dimension H | 15 mm |
| Dimension R | 148 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Number of turn buckles | 5 St. |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Permitted temperature range, max. | 120 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | B500mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFB 90 400 DD
400
1,25
7130589
DFB 90 500 DD
500
1,25
7130600
DFB 90 550 DD
550
1,25
7130619
DFB 90 600 DD
600
1,25
7130627
DFB 90 750 DD
750
1,25
7130631
DFB 90 900 DD
900
1,25
7130633
Width
DFB 90 400 DD
Item no.
7130589
Width
400
Plate thickness
1,25
DFB 90 500 DD
Item no.
7130600
Width
500
Plate thickness
1,25
DFB 90 550 DD
Item no.
7130619
Width
550
Plate thickness
1,25
DFB 90 600 DD
Item no.
7130627
Width
600
Plate thickness
1,25
DFB 90 750 DD
Item no.
7130631
Width
750
Plate thickness
1,25
DFB 90 900 DD
Item no.
7130633
Width
900
Plate thickness
1,25
