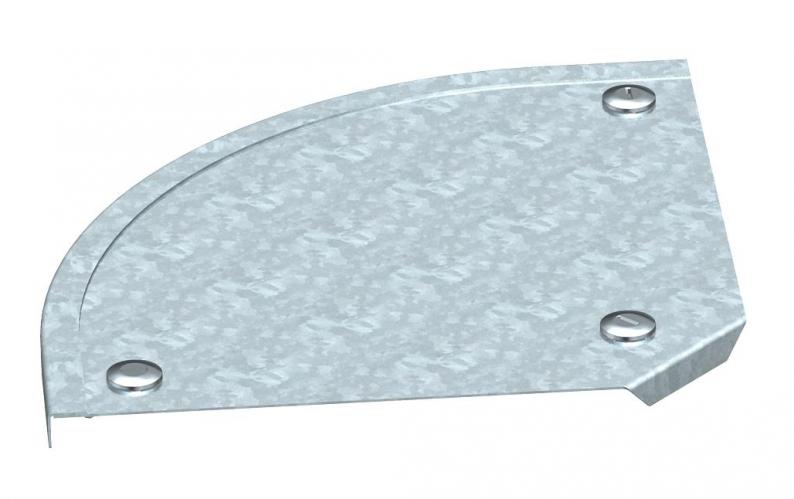

Cover for 90° bend DD
Type DFB 90 150 DD | Item no. 7130538 | EAN 4012196015436
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
Cover for 45° bend with pre-mounted sash locks.
The cover can be used with fittings of all side heights.
Technical data

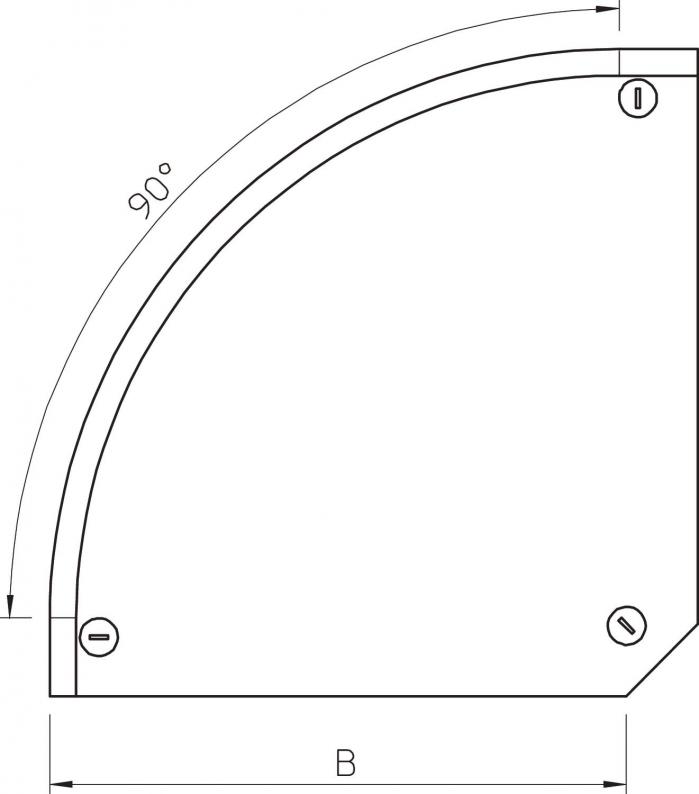

Dimensions
| Width | 150 mm |
|---|---|
| Height | 35 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Number of turn buckles | 3 St. |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Permitted temperature range, max. | 120 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | B150mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFB 90 100 DD
100
1
7130511
DFB 90 150 DD
150
1
7130538
DFB 90 200 DD
200
1
7130546
DFB 90 300 DD
300
1
7130562
Width
DFB 90 100 DD
Item no.
7130511
Width
100
Plate thickness
1
DFB 90 150 DD
Item no.
7130538
Width
150
Plate thickness
1
DFB 90 200 DD
Item no.
7130546
Width
200
Plate thickness
1
DFB 90 300 DD
Item no.
7130562
Width
300
Plate thickness
1
