Cover for 90° bend A4
Type DFB 90 100 A4 | Item no. 7134982 | EAN 4012195866633
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

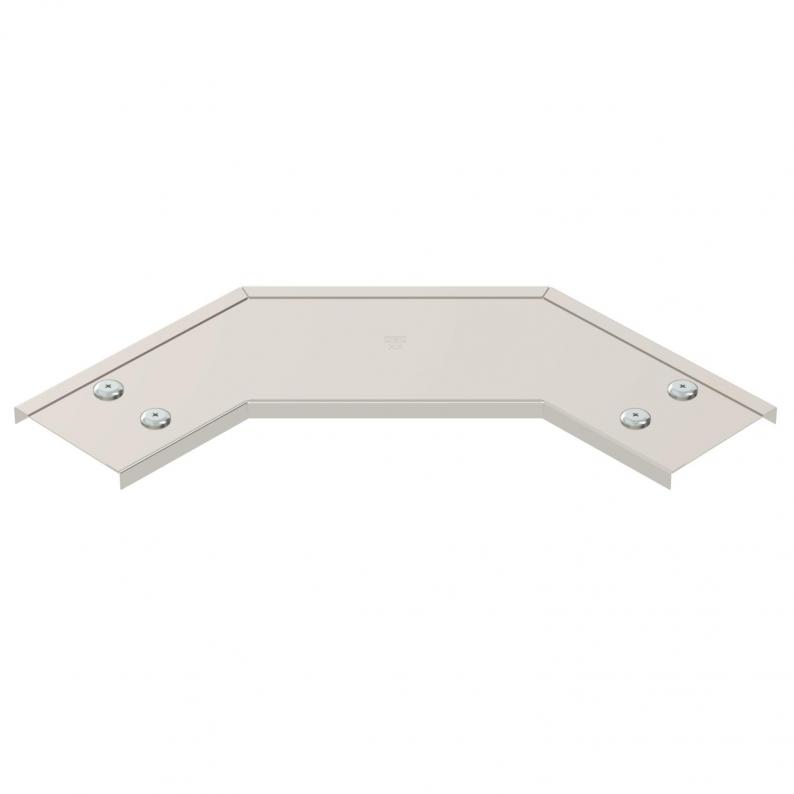

Cover for 90° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
The 100 mm width has a rectangular shape and does not correspond to the image.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Dimension | B100mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFB 90 100 A4
100
1
7134982
DFB 90 200 A4
200
1
7134988
Width
DFB 90 100 A4
Item no.
7134982
Width
100
Plate thickness
1
DFB 90 200 A4
Item no.
7134988
Width
200
Plate thickness
1
