Cover for 45° Magic bend DD
Type DFBM 45 150 DD | Item no. 7138402 | EAN 4012195928843
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

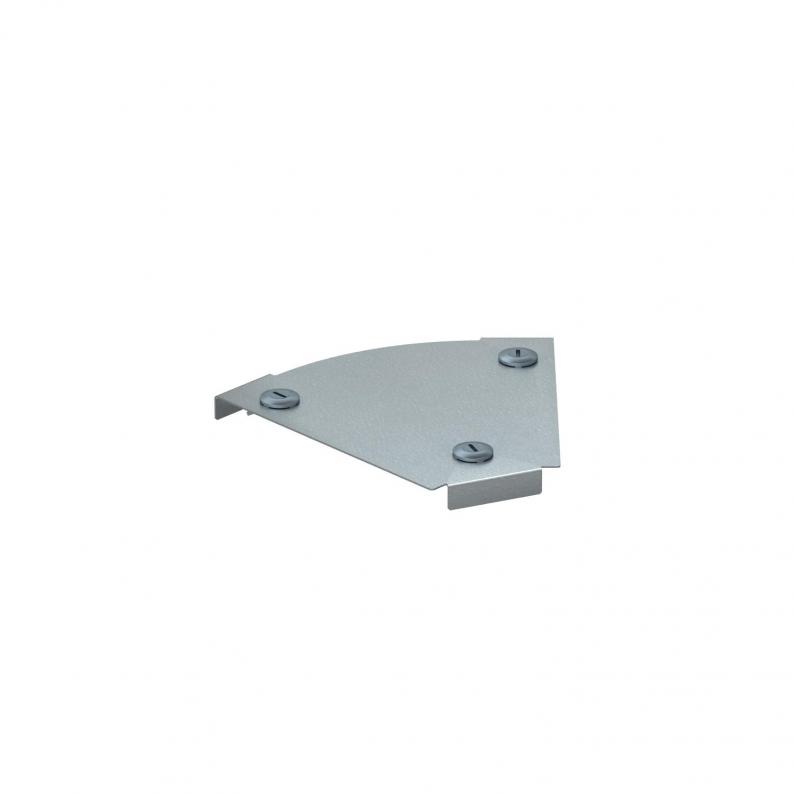

Cover for 45° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

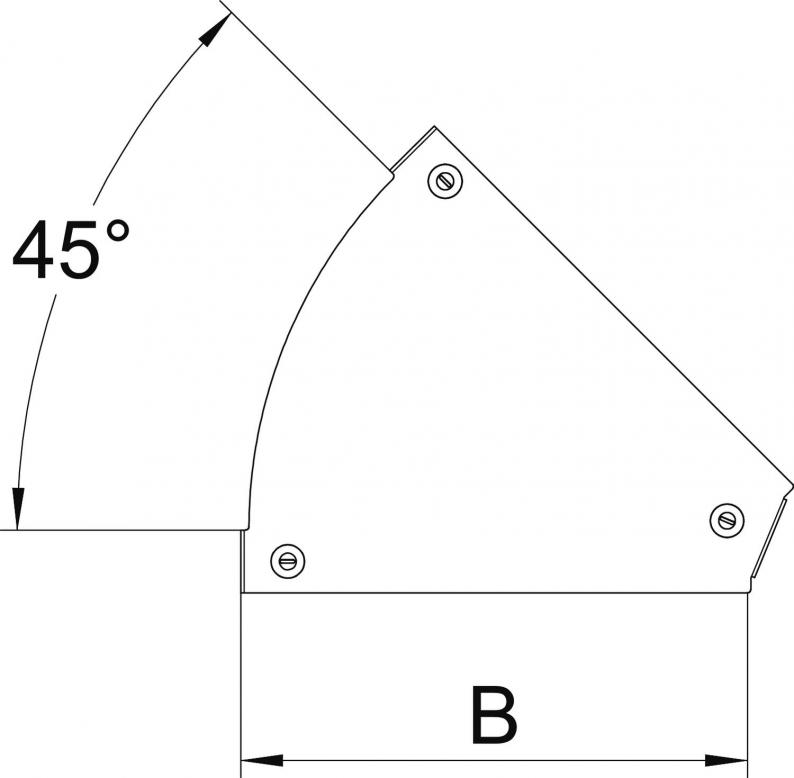

Dimensions
| Width | 150 mm |
|---|---|
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Bend (angle) | 45° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Dimension | B=150mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFBM 45 150 DD
150
1,25
7138402
DFBM 45 200 DD
200
1,25
7138404
DFBM 45 300 DD
300
1,25
7138406
DFBM 45 400 DD
400
1,25
7138408
DFBM 45 500 DD
500
1,25
7138410
DFBM 45 600 DD
600
1,25
7138412
Width
DFBM 45 150 DD
Item no.
7138402
Width
150
Plate thickness
1,25
DFBM 45 200 DD
Item no.
7138404
Width
200
Plate thickness
1,25
DFBM 45 300 DD
Item no.
7138406
Width
300
Plate thickness
1,25
DFBM 45 400 DD
Item no.
7138408
Width
400
Plate thickness
1,25
DFBM 45 500 DD
Item no.
7138410
Width
500
Plate thickness
1,25
DFBM 45 600 DD
Item no.
7138412
Width
600
Plate thickness
1,25
