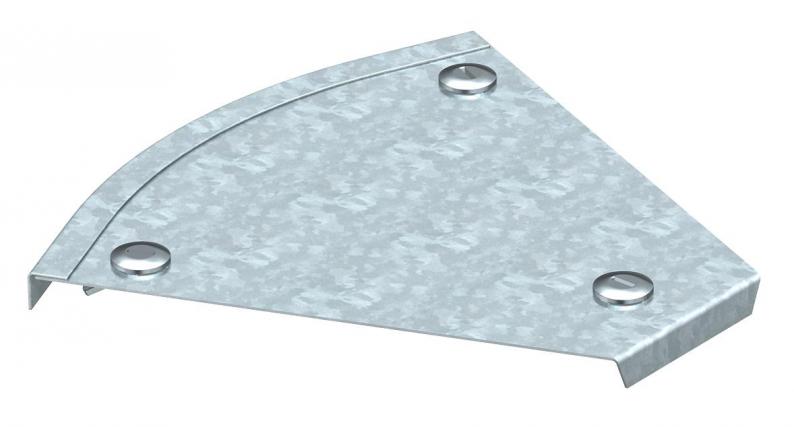

Cover for 45° bend FT

Type DFB 45 100 FT
Item no. 7132002
EAN 4012196923595

Description

Cover for 45° bend with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

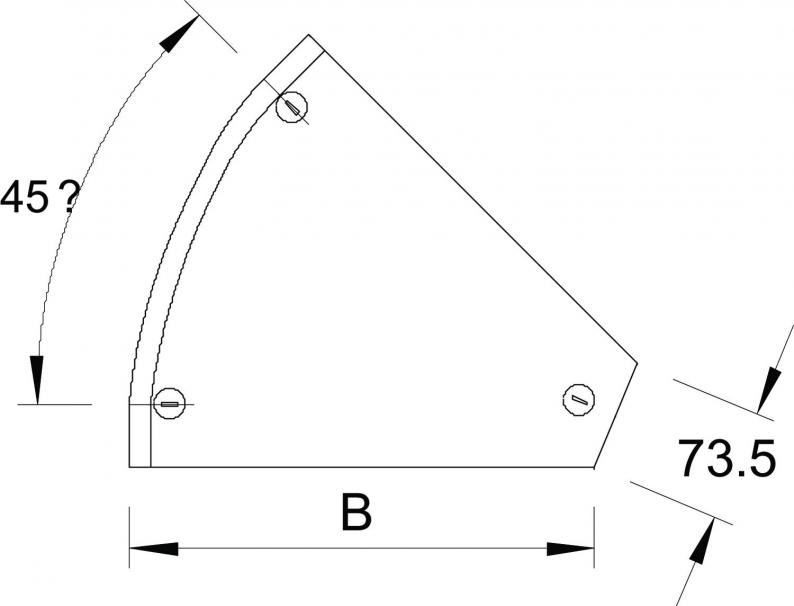

Dimensions

Width100 mm
Height35 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1 mm
Number of turn buckles3 St.
Bend (angle)45°
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Hingedno
Change of directionHorizontal
Fastening typeSash lock
ROHS-conformantyes
DimensionB100mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,8812 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,8812 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,8812 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
DFB 45 100 FT
Item no.
7132002
Width
100
Plate thickness
1
DFB 45 200 FT
Item no.
7132004
Width
200
Plate thickness
1
DFB 45 300 FT
Item no.
7132006
Width
300
Plate thickness
1
