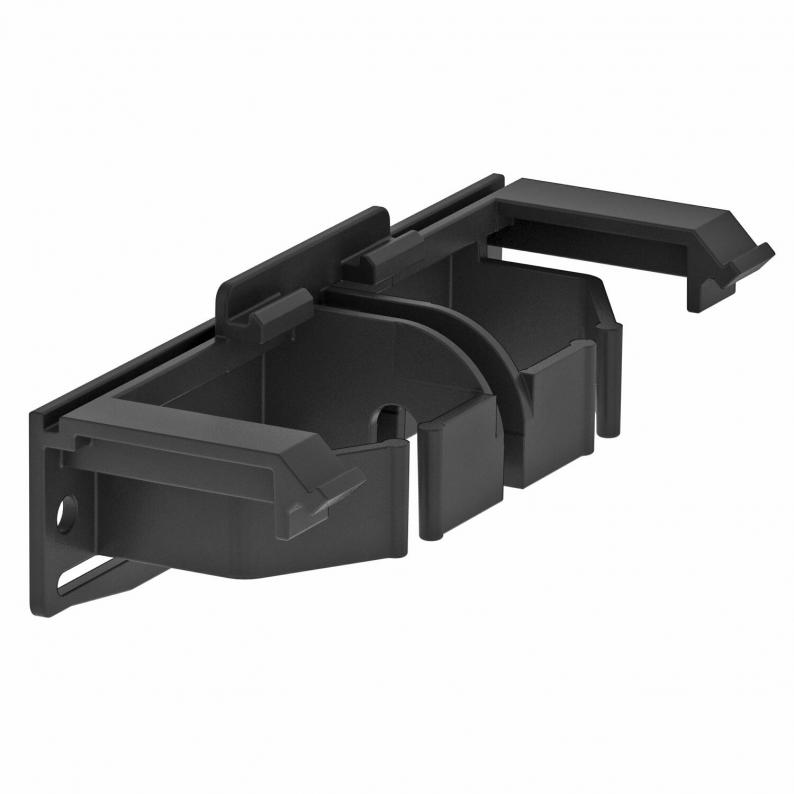

Cover adapter
Type GAD OTA | Item no. 6115975 | EAN 4012195914495
Item no. / Type
6115975 / GAD OTA
Colour
Graphite black; RAL 9011
Smallest selling unit: 5 piece
5piece
Description
Cover adapter for mounting on trunking bases and fittings of the GAD and Rapid IBIS design device installation trunking series. The cover adapter can be pushed into a guide on the base and is used to accept the trunking cover and keep it at the desired spacing. It is also used for bundled cable exits and can be moved into the lengthwise direction. A maximum spacing of 500 mm between the cover adapters must be maintained.
Technical data

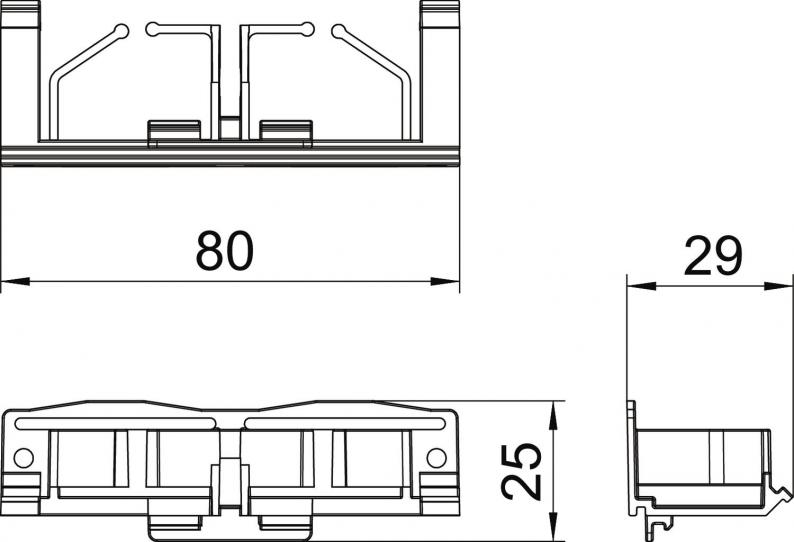

Dimensions
| Length | 29 mm |
|---|---|
| Width | 80 mm |
| Height | 25 mm |
Technical data
| Ceiling mounting | no |
|---|---|
| With equipotential bonding | no |
| Dimension | 25x80x29 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0258 kg CO2e / 1 Piece |
