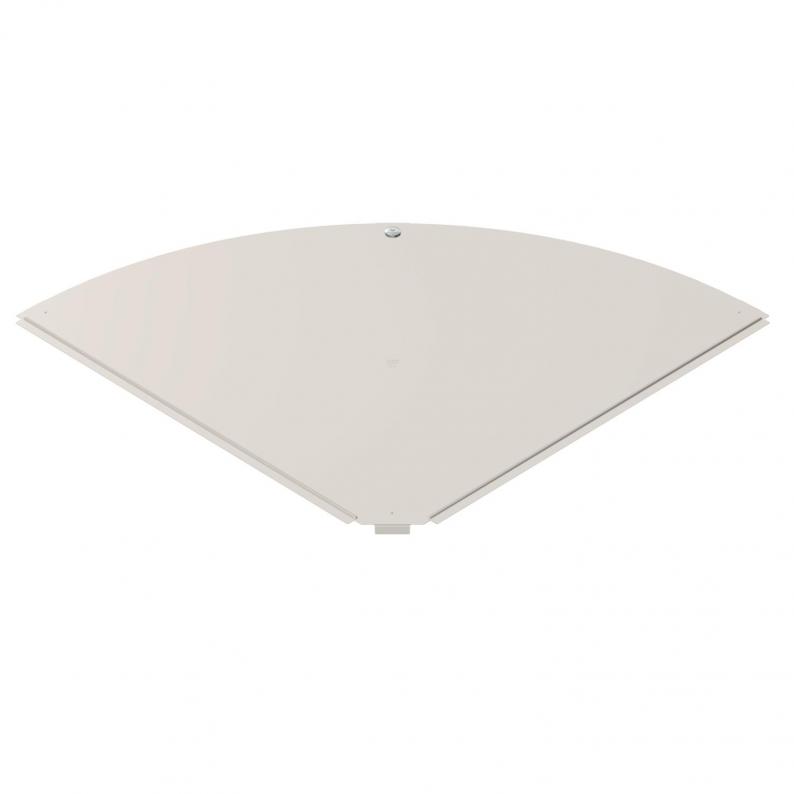

Cover, 90° bend A2

Cover, 90° bend A2

Type RBD 90 600 A2 | Item no. 6036982 | EAN 4012197406028

Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length657 mm
Width600 mm
Dimension B600 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1 mm
Number of turn buckles1 St.
Bend (angle)90°
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Hingedno
Change of directionHorizontal
Fastening typeSash lock
Permitted temperature range, max.120 °C
Permitted temperature range, min.-20 °C
DimensionB600mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate37,8115 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
Plate thickness
RBD 90 100 A2
Item no.
6036970
Width
100
Plate thickness
0,75
RBD 90 150 A2
Item no.
6036972
Width
150
Plate thickness
0,75
RBD 90 200 A2
Item no.
6036974
Width
200
Plate thickness
0,75
RBD 90 300 A2
Item no.
6036976
Width
300
Plate thickness
0,75
RBD 90 400 A2
Item no.
6036978
Width
400
Plate thickness
1
RBD 90 500 A2
Item no.
6036980
Width
500
Plate thickness
1
RBD 90 600 A2
Item no.
6036982
Width
600
Plate thickness
1
