Coupling GS-KUP70
Type GS-KUP70 | Item no. 6277290 | EAN 4012195660590
Item no. / Type
6277290 / GS-KUP70
Smallest selling unit: 1 PU
1PU
Description
Coupling for connecting the trunking bases. This creates the equipotential bonding between the trunking bases.

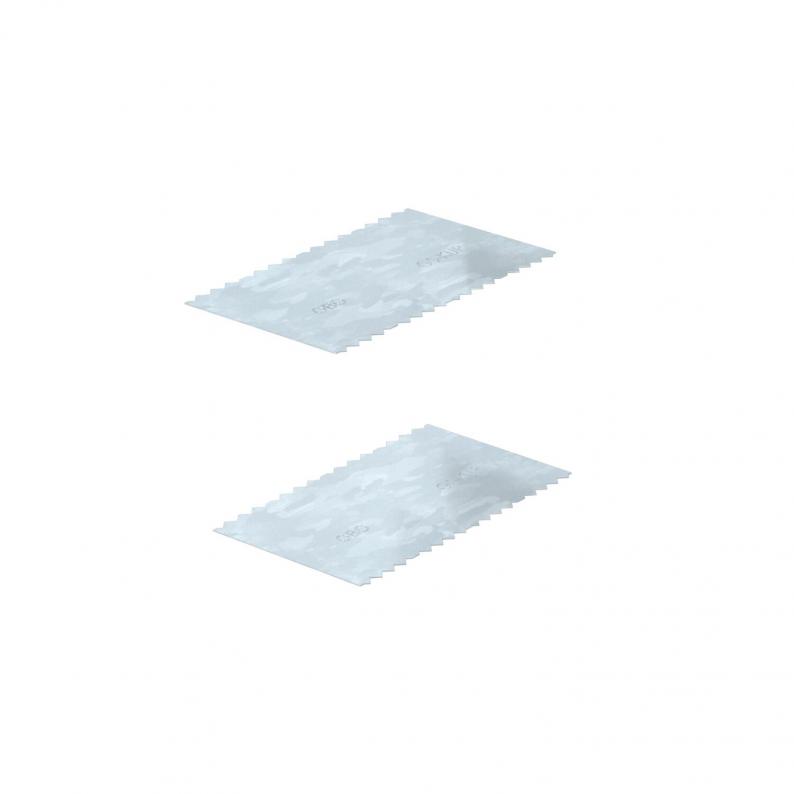

The scope of delivery of a coupling includes 2 connection plates.
The scope of delivery of a coupling includes 2 connection plates.
Technical data
Dimensions
| Length | 120 mm |
|---|---|
| Width | 70 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| With equipotential bonding | yes |
| Protection rating IK code | IK10 |
| Version for | Universal |
| Type | coupling |
| Trunking depth | 70 mm |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Dimension | 70x120 |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3421 kg CO2e / 2 Piece |
