Coupling GA-KUP90
Type GA-KUP90
|Item no. 6279704
|EAN 4012195770022
Item no. / Type
6279704 / GA-KUP90
Smallest selling unit: 1 PU
1PU
PU
Description
Joint connector for connecting the bases of Rapid 80 GA aluminium device installation trunking.

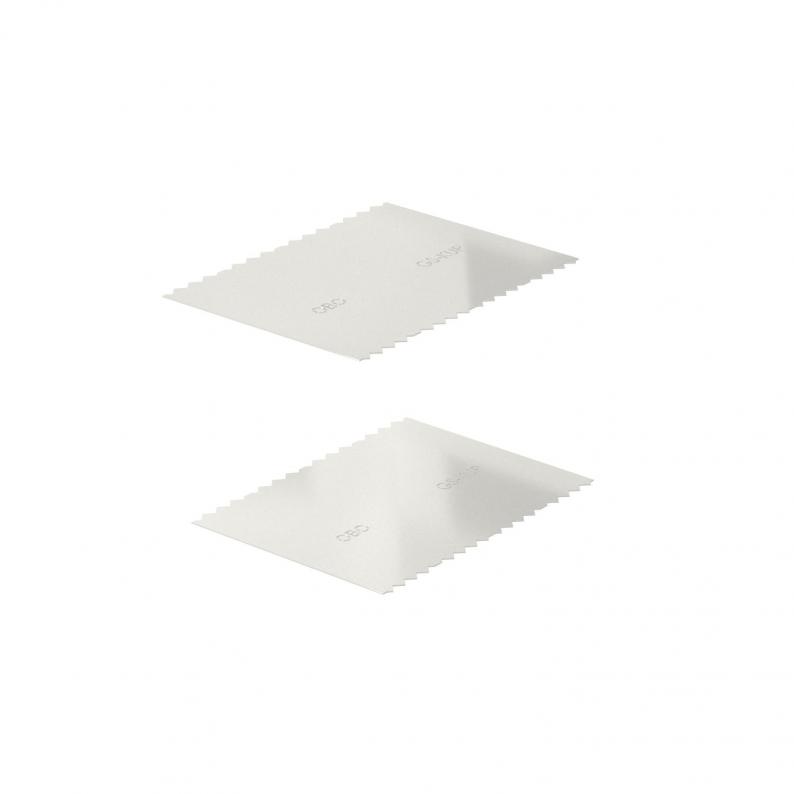

The scope of delivery of a coupling includes 2 connection plates.
The scope of delivery of a coupling includes 2 connection plates.
Technical data

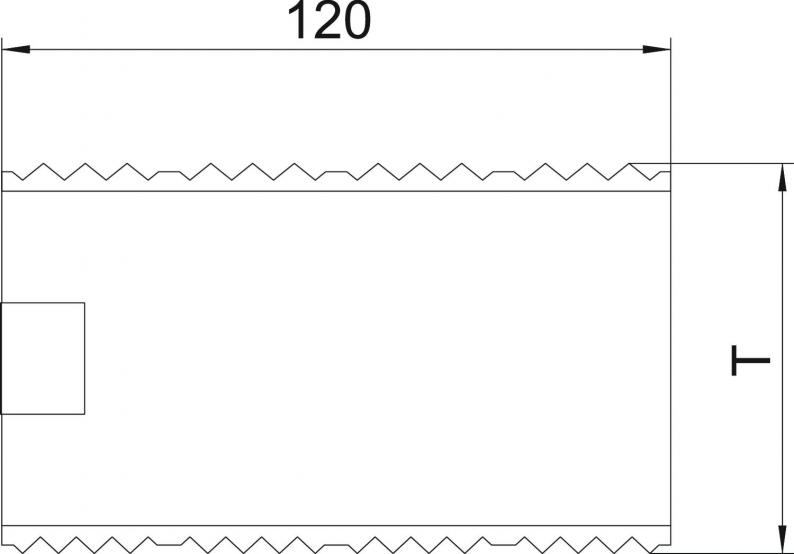

Dimensions
| Length | 120 mm |
|---|---|
| Width | 84 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| With equipotential bonding | yes |
| Protection rating IK code | IK10 |
| Version for | Universal |
| Type | coupling |
| Trunking depth | 90 mm |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 84x120 |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3805 kg CO2e / 2 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Item no.
GA-KUP90
120
6279704
GA-KUP90
Item no.
6279704
Length
120
