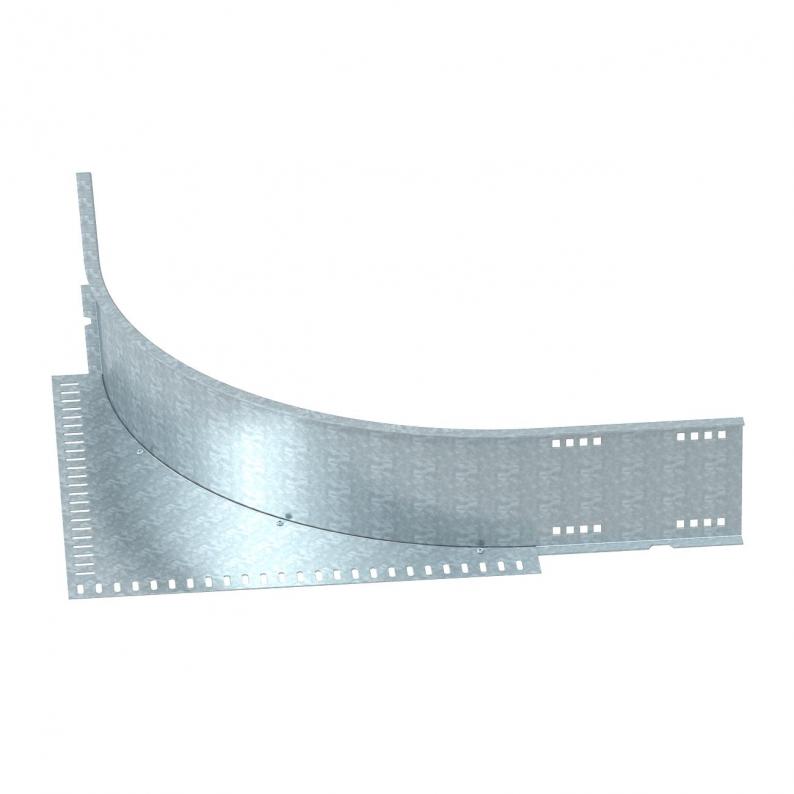

Corner extension piece 160 FS
Type WEAS 160 FS | Item no. 6098860 | EAN 4012195242543
Item no. / Type
6098860 / WEAS 160 FS
Smallest selling unit: 1 piece
1piece
Description
Corner extension piece for wide span cable trays and ladders with a side height of 160 mm.
Technical data
Dimensions
| Height | 160 mm |
|---|---|
| Dimension h | 160 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Rustproof steel, pickled | no |
| Dimension | 160 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 17,2297 kg CO2e / 1 Piece |
