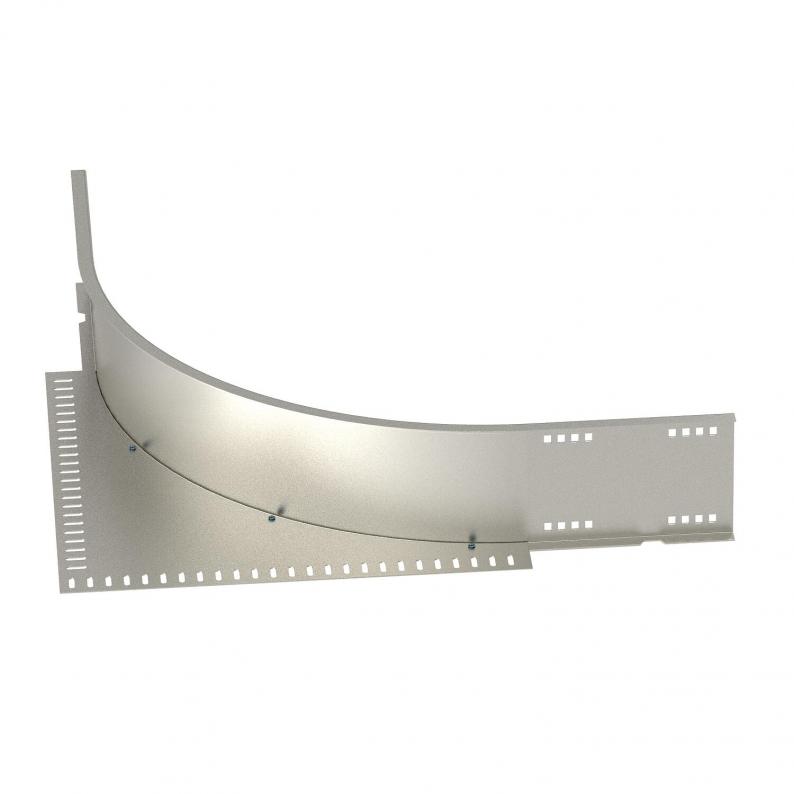

Corner extension piece 160 A2

Corner extension piece 160 A2

Type WEAS 160 A2 | Item no. 6098868 | EAN 4012195696346

Show all variants
Item no. / Type
6098868 / WEAS 160 A2

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Corner extension piece for wide span cable trays and ladders with a side height of 160 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 110 mm
  • Wide span cable ladder, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Height160 mm
Dimension h160 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Rustproof steel, pickledno
Dimension160
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate36,0516 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

WEAS 160 A2
Item no.
6098868
