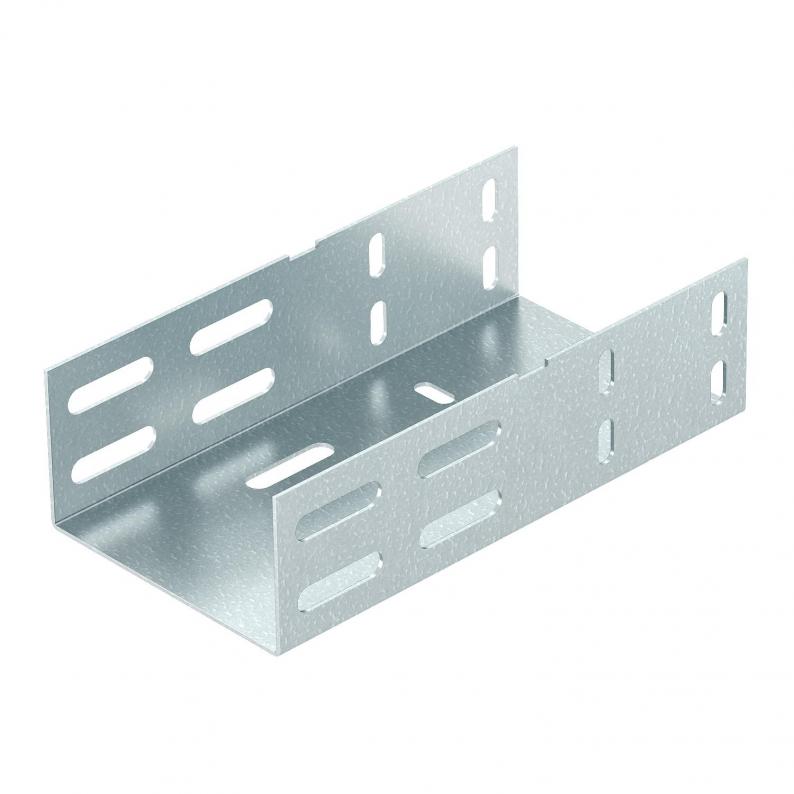

Connector for expansion compensation DD

Connector for expansion compensation DD

Type RDV 610 DD | Item no. 6065974 | EAN 4012196218035

Show all variants
Item no. / Type
Width
Height
Plate thickness
Dimension B
Colour
zinc

Smallest selling unit: 2 piece

DescriptionTechnical dataDownloadsVariants

Description

Straight connector for compensation of linear thermal expansion.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Packaging made entirely from recycled cardboard

Technical data

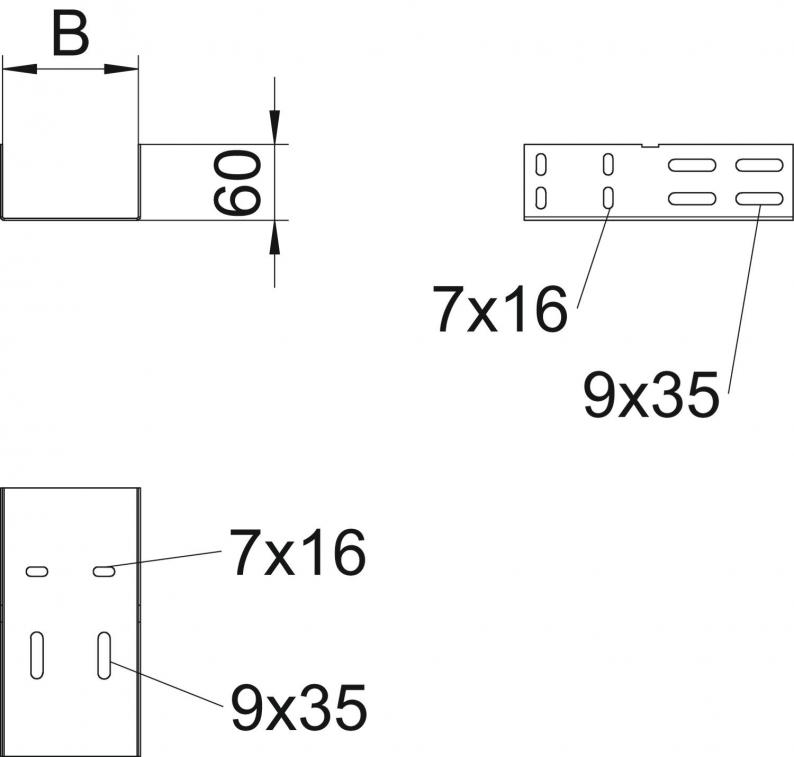

Dimensions

Length200 mm
Width100 mm
Height57 mm
Dimension L200 mm
Dimension B10 mm

Technical data

Maintain electrical functionsno
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,5 mm
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Adjustable connector, horizontalno
Articulated connector, verticalno
Suitable for cable tray system height60 mm
Version forStraight connector
Connection typeScrew connector
Dimension60x100x200
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
Dimension B
RDV 610 DD
Item no.
6065974
Width
100
Height
57
Plate thickness
1,5
Dimension B
10
Colour
zinc
RDV 620 DD
Item no.
6065976
Width
200
Height
57
Plate thickness
1,5
Dimension B
200
Colour
zinc
RDV 630 DD
Item no.
6065978
Width
300
Height
57
Plate thickness
1,5
Dimension B
300
Colour
zinc
RDV 640 DD
Item no.
6065980
Width
400
Height
57
Plate thickness
1,5
Dimension B
400
Colour
zinc
RDV 650 DD
Item no.
6065982
Width
500
Height
57
Plate thickness
1,5
Dimension B
500
Colour
zinc
RDV 660 DD
Item no.
6065984
Width
600
Height
57
Plate thickness
1,5
Dimension B
600
Colour
zinc
