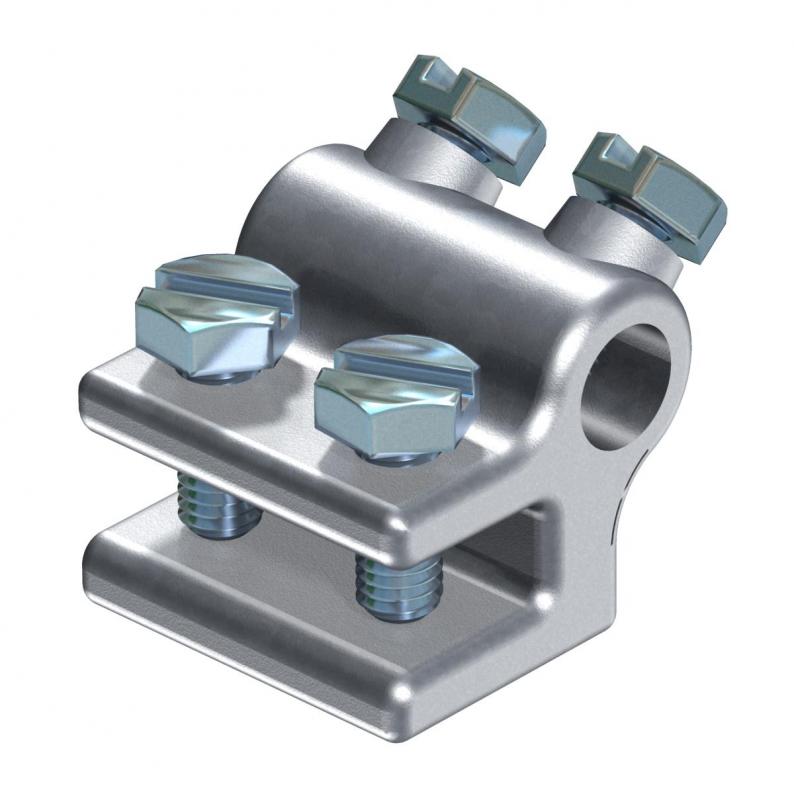

Connection terminal to 14 mm
Type 272 8 | Item no. 5318084 | EAN 4012195421030
Item no. / Type
Material
cast steel
Smallest selling unit: 20 piece
20piece
Description
• Flange thickness to 8 and/or 14 mm
• With 4 hexagonal bolts M8
• Conforms to the requirements according to DIN V VDE V 0185-3, Section 4.5
• With 4 hexagonal bolts M8
• Conforms to the requirements according to DIN V VDE V 0185-3, Section 4.5
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Connection terminal |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8-10 mm |

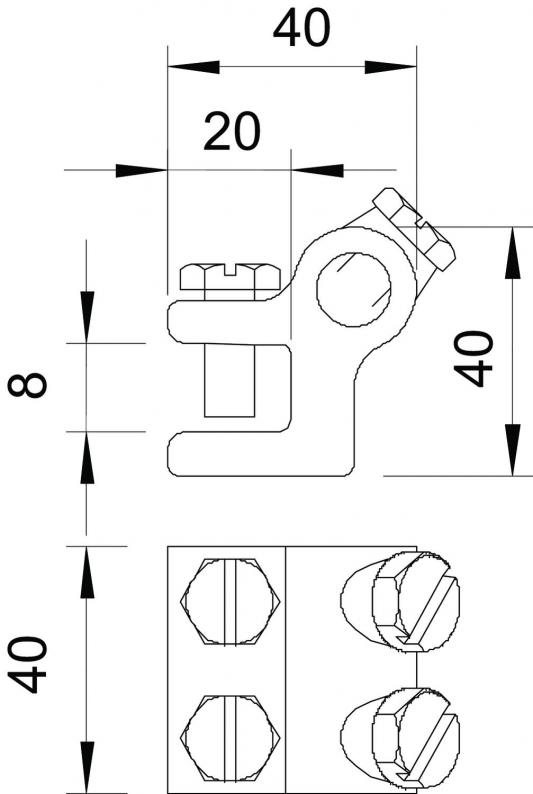

| Dimension | 8mm |
| Surface | Hot-dip galvanised |
| Material | cast steel |
| Clamping range, max. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4703 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Material
Item no.
272 8
cast steel
5318084
272 14
cast steel
5318149
272 8
Item no.
5318084
Material
cast steel
272 14
Item no.
5318149
Material
cast steel
