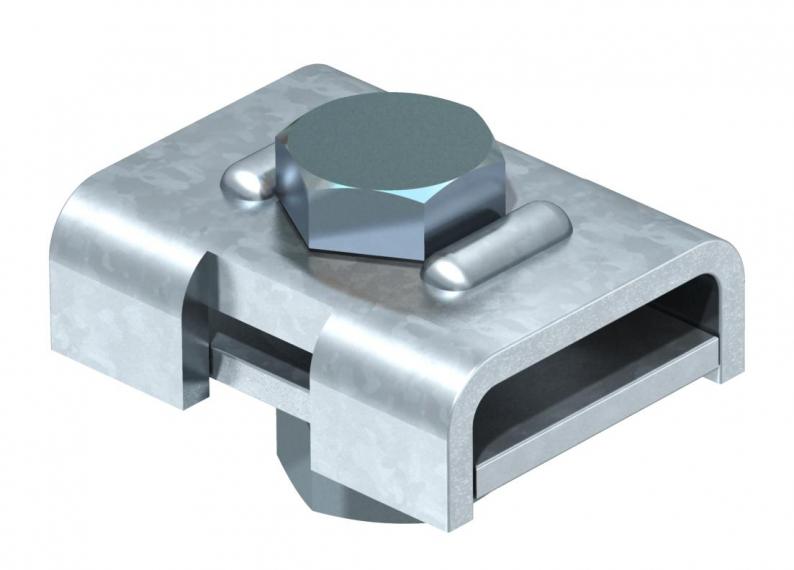

Connection terminal for round conductors

Type 1818 | Item no. 5012015 | EAN 4012195377719

Item no. / Type

5012015 / 1818

Smallest selling unit: 10 piece

Description

• For connecting round conductor Rd 8-10
• With 1 hexagonal bolt M12 x 40, 1 hexagonal nut M12 and 1 lock washer, stainless steel

Type of fastening screw	Hexagonal bolt
Type of connector	Connectors
Lightning current carrying capacity	N/50 kA
Fit	Rd 8-10 mm

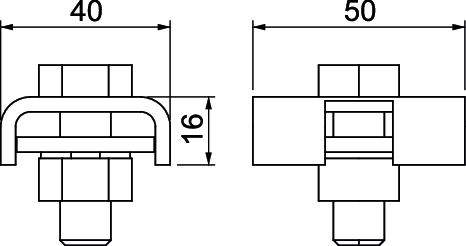

Dimension	50x40x16
Surface	Hot-dip galvanised
Material	Steel
CO2 Footprint (GWP) Cradle-to-Gate	0,4557 kg CO2e / 1 Piece

0 selected

Data sheet (1)

Catalogues & Flyers (3)

Declarations (2)

Instructions and Aid (1)

Product images (2)

3D data downloads (3)

Tender specifications (2)

1818

Item no.

5012015

Fit

Rd 8-10
