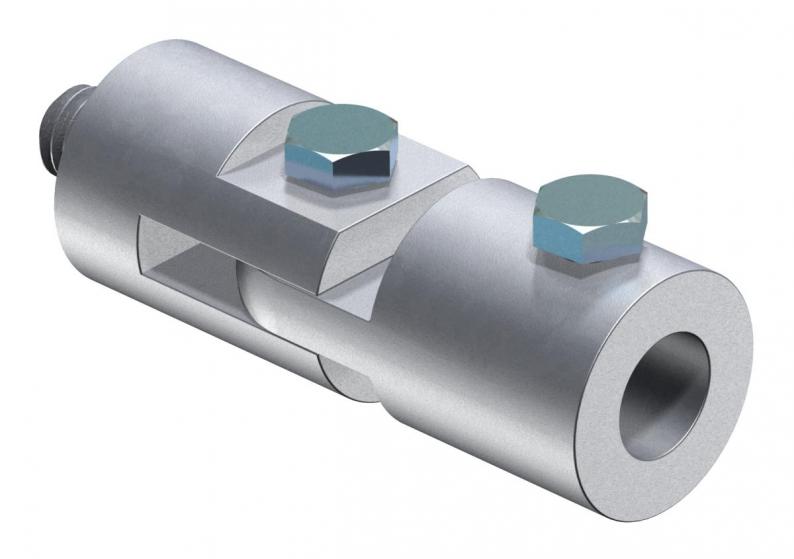

Connection joint
Type 101 IAG
|Item no. 5408504
|EAN 4012195674290
Item no. / Type
5408504 / 101 IAG
Smallest selling unit: 10 piece
10piece
piece
Description
• Attaching link for installation on concrete stones
• With thread M16 on slanting roof surfaces
• With M10 bolts
Technical data

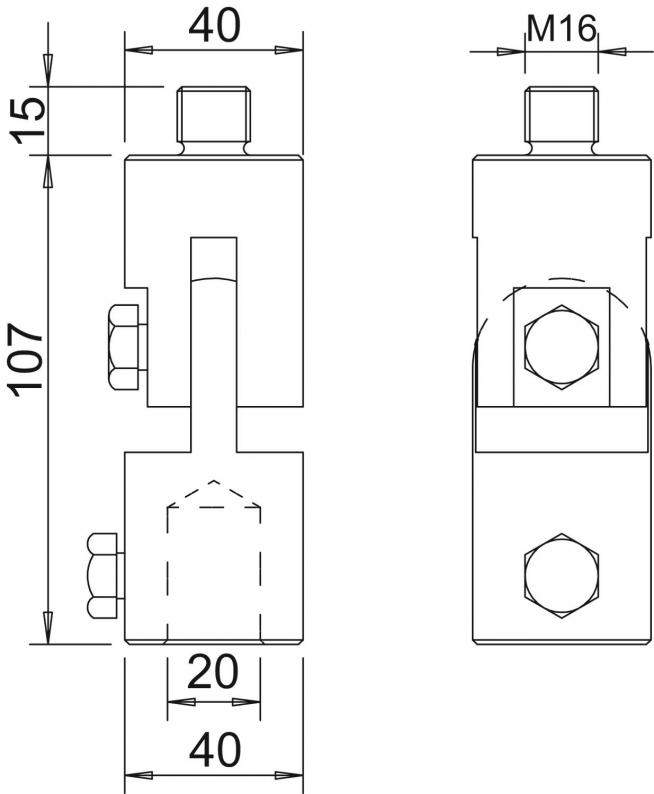

Dimensions
| Length | 107 mm |
|---|---|
| Dimension L | 107 mm |
| Dimension d Ø | 20 mm |
| Dimension d min. | 40 mm |
Technical data
| Connection | Round conductor |
|---|---|
| Dimension | M16 |
| Material | Aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7551 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Product images (2)
Tender specifications (2)
Variants
Type
Dimension L
Dimension d Ø
Dimension d min.
Item no.
101 IAG
107
20
40
5408504
101 IAG
Item no.
5408504
Dimension L
107
Dimension d Ø
20
Dimension d min.
40
