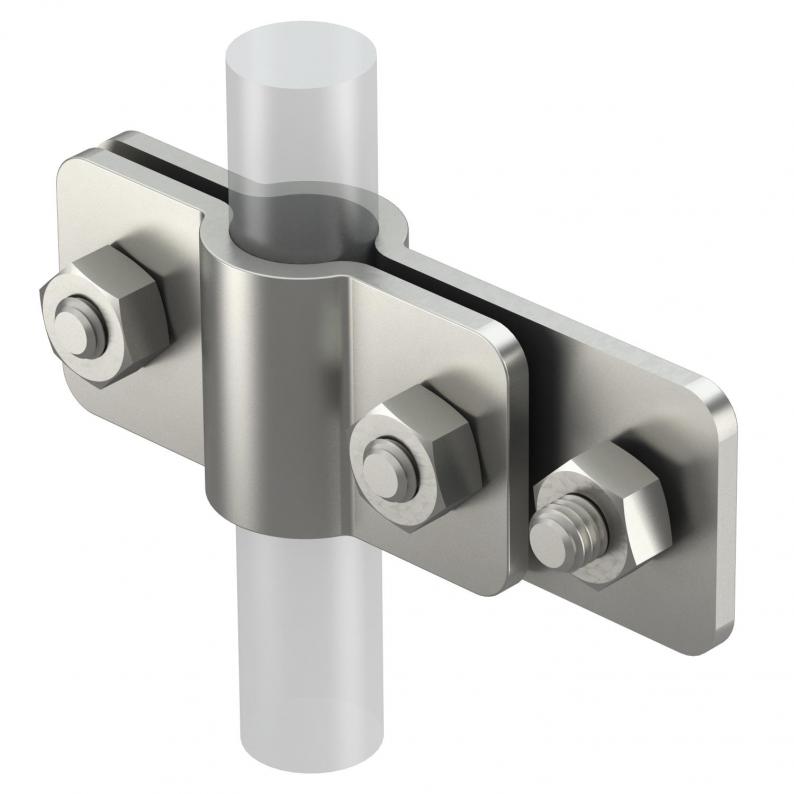

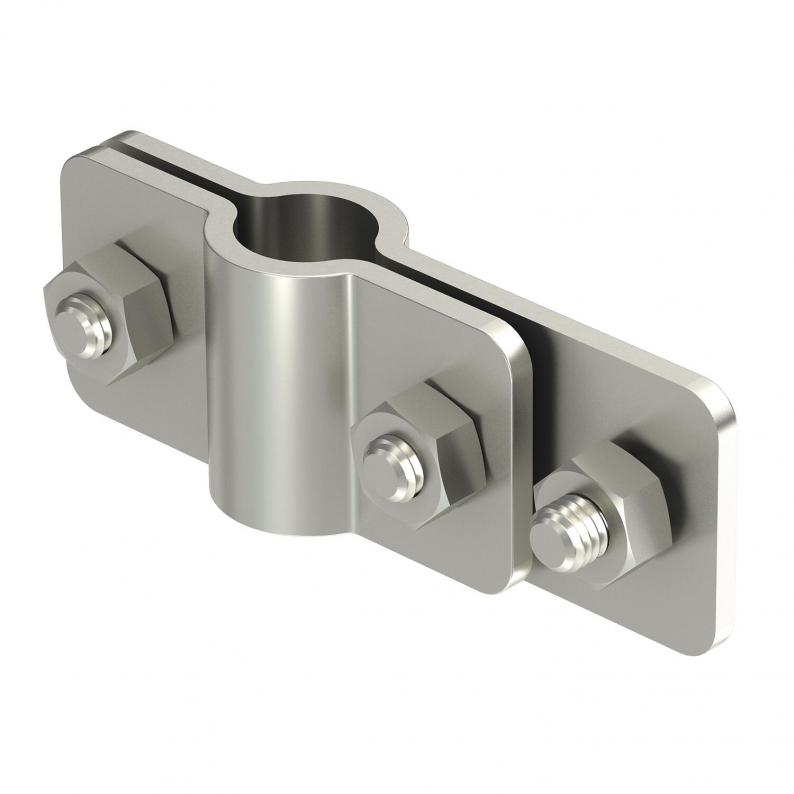

Connection clip for earthing rod on flat conductor VA
Type 2730 20 VA | Item no. 5001366 | EAN 4012195635475
Item no. / Type
5001366 / 2730 20 VA
Smallest selling unit: 5 piece
5piece
Description
• ST, BP, OMEX and LightEarth systems
• On flat conductors
• Including hex-head screw for attaching flat conductors
• On flat conductors
• Including hex-head screw for attaching flat conductors
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Earthing connection diameter | 20 mm |
| Type | Connection clip |
| for earth rods | 20 mm |
| Dimension | 20mm |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8258 kg CO2e / 1 Piece |

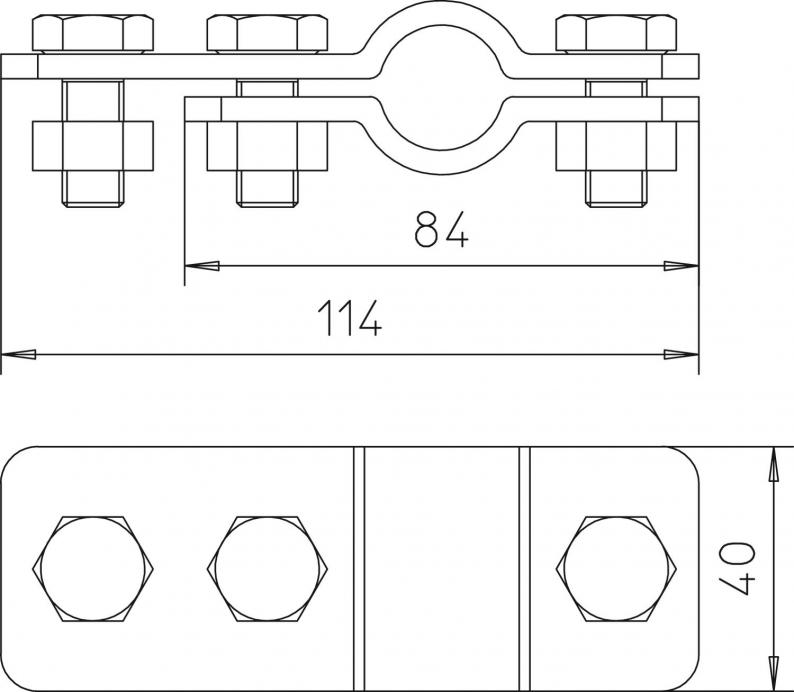

Dimensions
| Dimension A | 84 mm |
|---|---|
| Dimension B | 114 mm |
