Connection clamp AB EX ISG, angled
Type AB EX ISG SW M24
|Item no. 5240394
|EAN 4012196524488
Item no. / Type
5240394 / AB EX ISG SW M24
Version for
For M24 bolt
Smallest selling unit: 2 piece
2piece
piece
Description
Connection clamp for mounting the OBO Ex spark gap, type EX ISG, on insulating flanges and insulating pieces.
Technical data
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|
Technical data
| Version for | For M24 bolt |
|---|---|
| Drill hole diameter, min. | 26 mm |

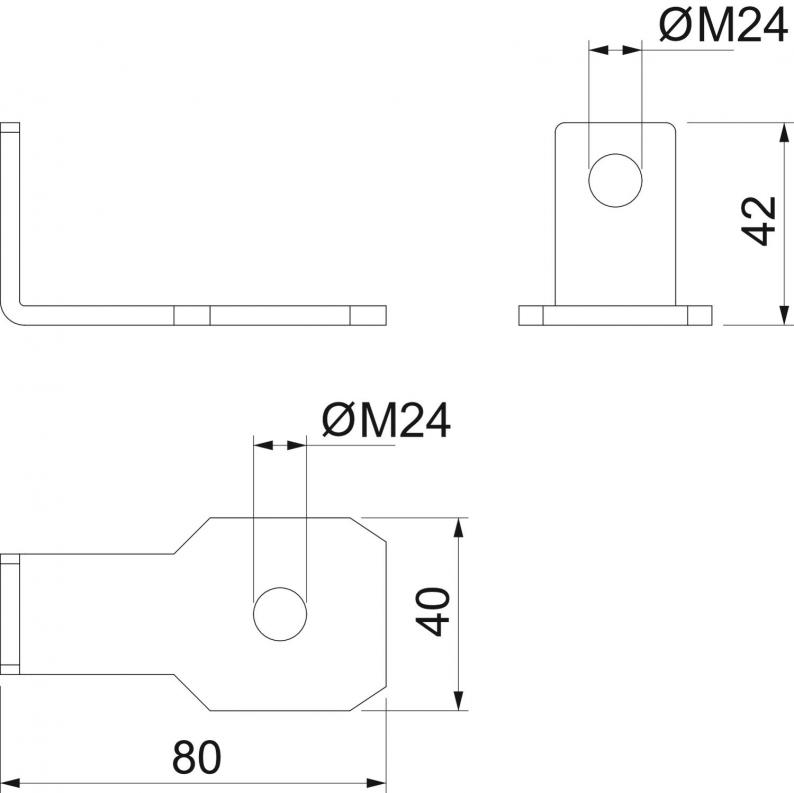

| Dimension | 85x45x40 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Accessories | yes |
| Spare part | no |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4386 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
Tender specifications (2)
Variants
Type
Version for
Drill hole diameter, min.
Item no.
AB EX ISG SW M24
For M24 bolt
26
5240394
AB EX ISG SW M24
Item no.
5240394
Version for
For M24 bolt
Drill hole diameter, min.
26
