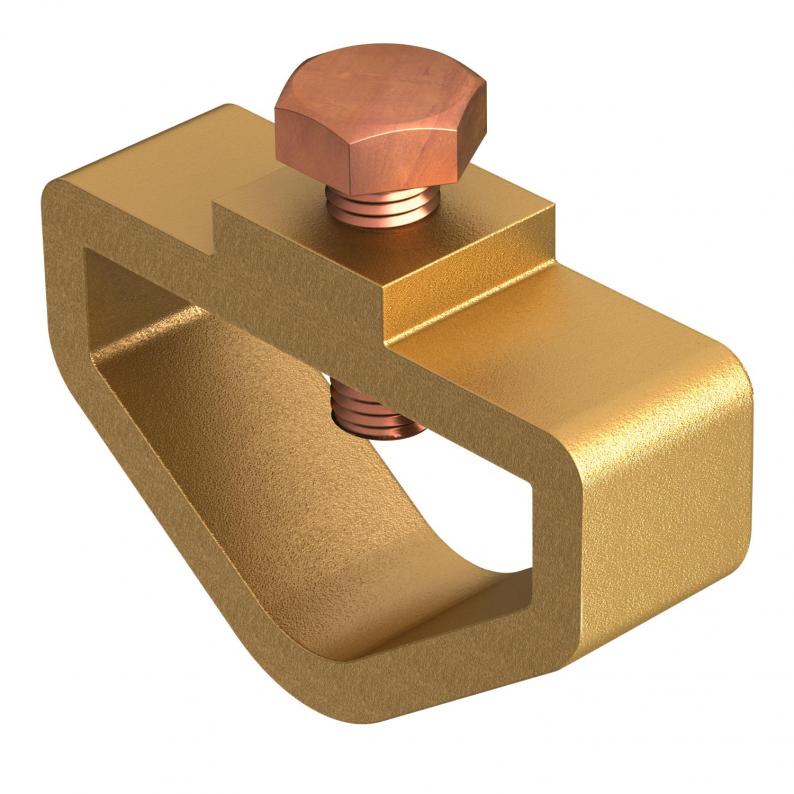

Connection clamp

Type 2745 16 30 | Item no. 5001592 | EAN 4012196431212

Item no. / Type

Smallest selling unit: 10 piece

Description

• For connection of the copper-plated earth rod, type 219 16 CU, to conductor material

• Type A terminal

Intermediate plate	no
Type of connector	Connectors
Connection	Flat conductor
Type	Connection sleeve
Fit	Rd 14,2/ FL max. 40 x 12 mm

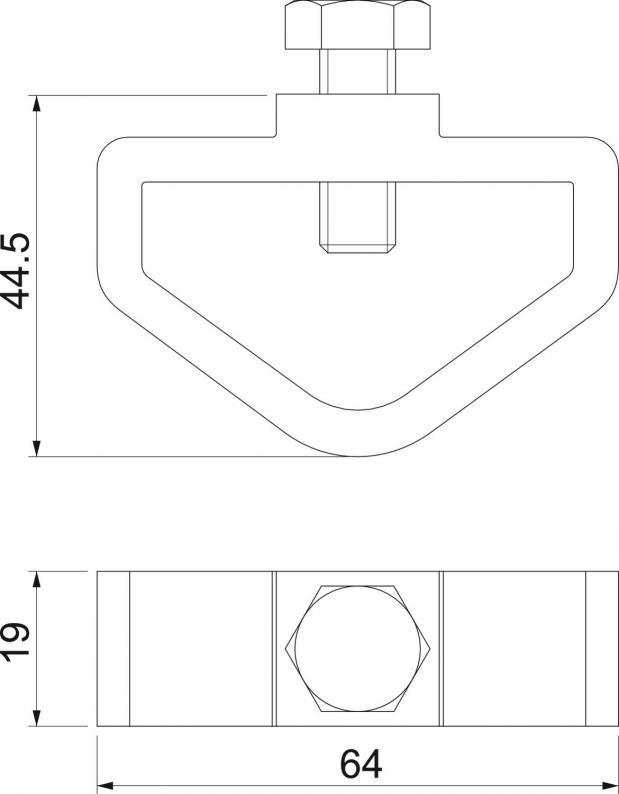

Dimension	64x19x45
Material	Red bronze
CO2 Footprint (GWP) Cradle-to-Gate	0,5862 kg CO2e / 1 Piece

0 selected

Data sheet (1)

Catalogues & Flyers (3)

Declarations (2)

Instructions and Aid (1)

Product images (2)

3D data downloads (1)

Tender specifications (2)
