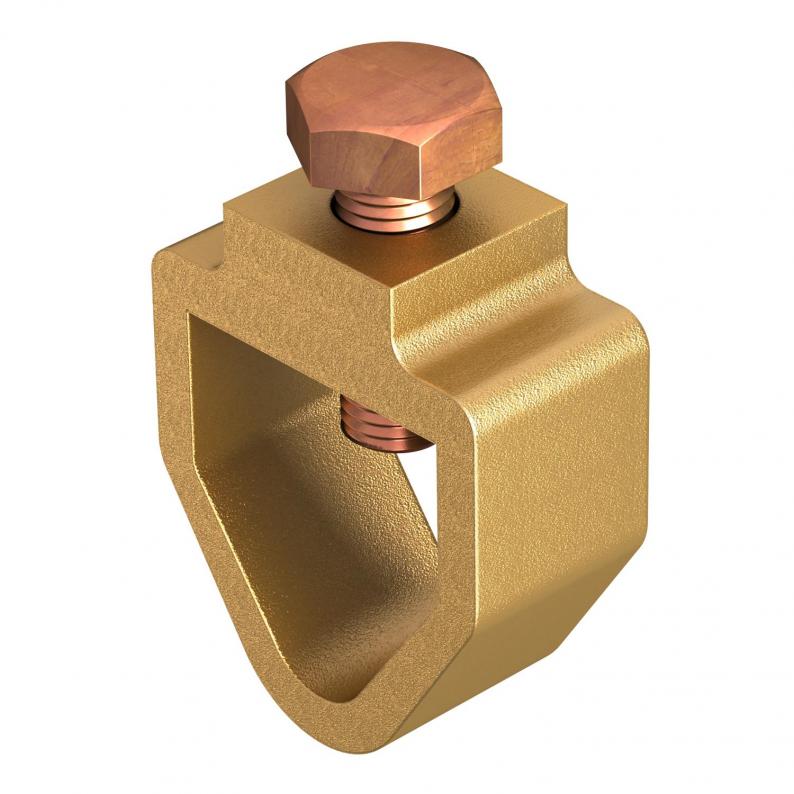

Connection clamp
Type 2745 16 25
|Item no. 5001590
|EAN 4012196431120
Item no. / Type
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
piece
Description
• For connection of the copper-plated earth rod, type 219 16 CU, to conductor material
• Type A terminal
• Type A terminal
Technical data
Dimensions
| Length | 46 mm |
|---|---|
| Width | 32 mm |
| Height | 19 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of connector | Connectors |
| Connection | Flat conductor |
| Type | Connection sleeve |
| Fit | Rd 14,2/ FL max. 26 x 12 mm |
| Dimension | 46x19x37 |
| Material | Aluminium bronze |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
