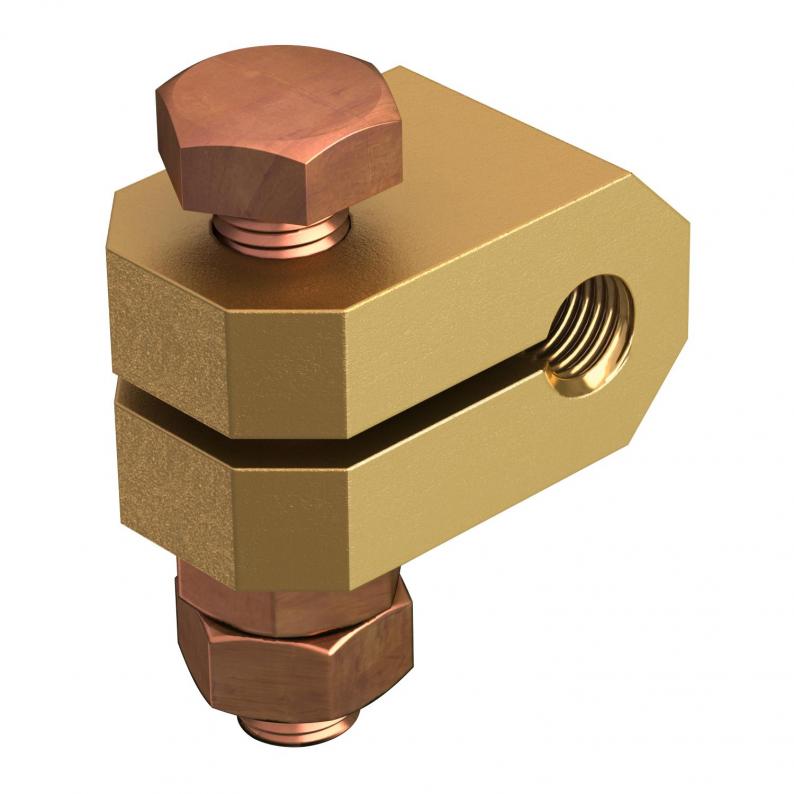

Connection clamp
Type 2760 16 | Item no. 5001601 | EAN 4012196431274
Item no. / Type
5001601 / 2760 16
This item is a discontinued product!
Smallest selling unit: 5 piece
5piece
Description
• For the connection of conductor materials with conductor shoes to earth rod 219 16 CU
Technical data

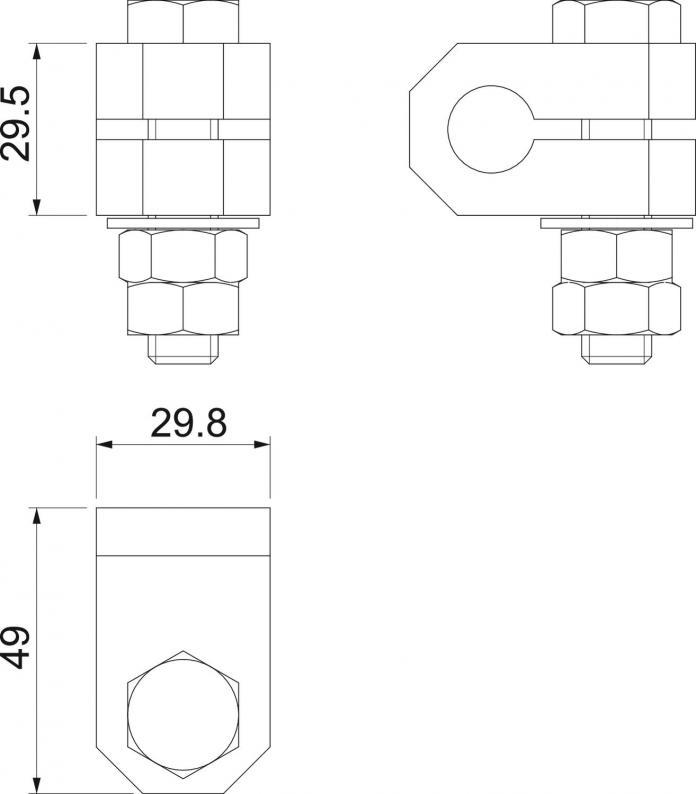

Dimensions
| Length | 50 mm |
|---|---|
| Width | 30 mm |
| Height | 50 mm |
Technical data
| Intermediate plate | yes |
|---|---|
| Type of connector | Clamp connector |
| Connection | Flat conductor |
| Type | Connection clip |
| for earth rods | 14,2 mm |
| Dimension | 49x29x28 |
| Material | Red bronze |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
for earth rods
Item no.
2760 16
14,2
5001601
2760 16
Item no.
5001601
for earth rods
14,2
