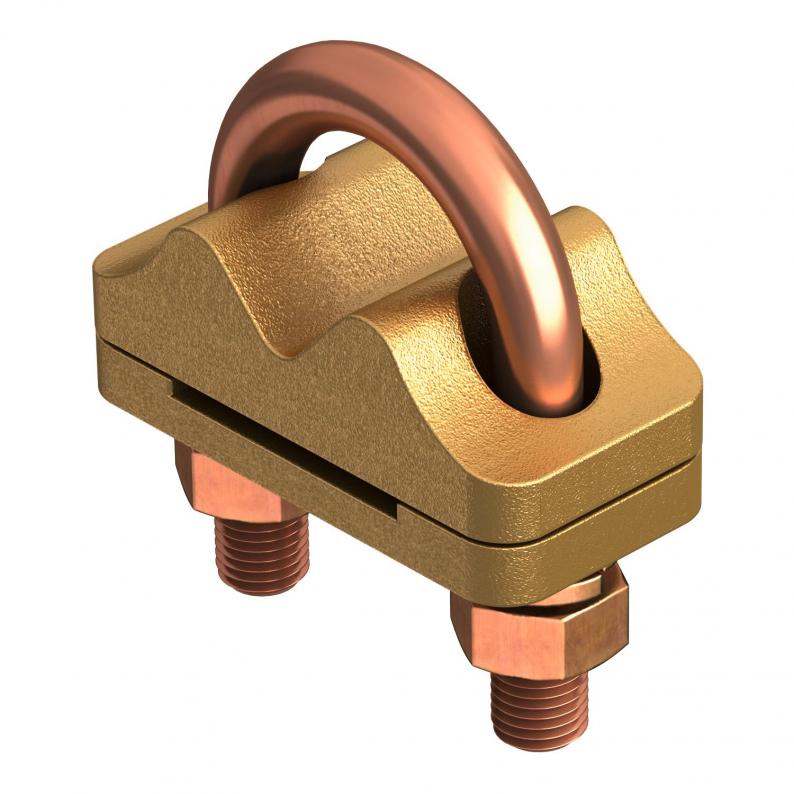

Connection clamp
Type 2740 16 KL
|Item no. 5001513
|EAN 4012196431205
Item no. / Type
for earth rods
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
piece
Description
• Suitable for connecting round conductors Rd 8-10 or flat conductors with earth rod 219 16 CU
Technical data

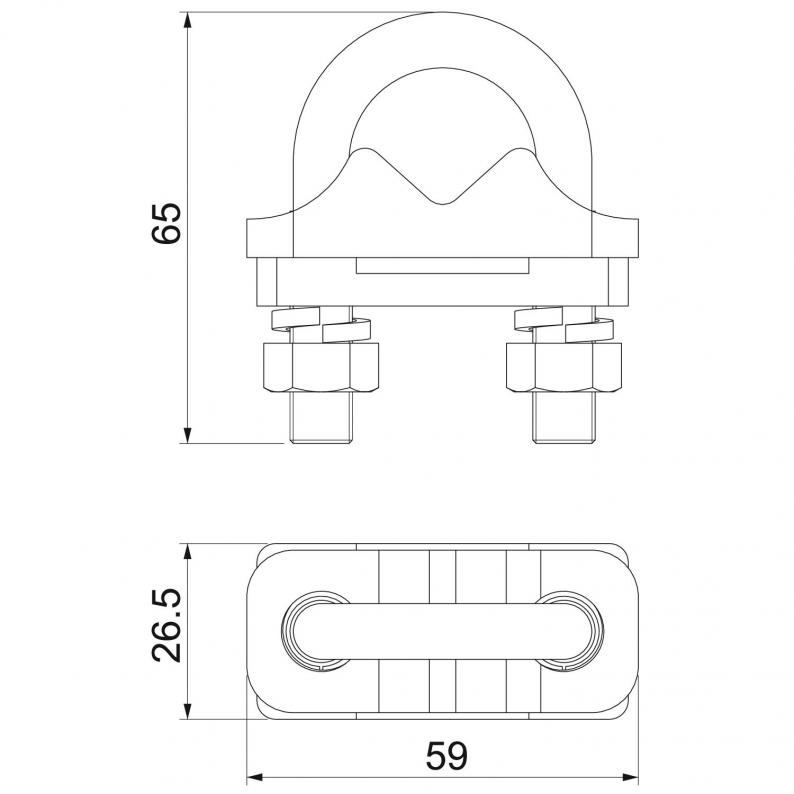

Dimensions
| Length | 59 mm |
|---|---|
| Width | 27 mm |
| Height | 65 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of connector | Connectors |
| Earthing connection diameter | 16 mm |
| Connection | Flat conductor |
| Suitable for round conductor diameters, min. | 8 mm |
| Suitable for round conductor diameters, max. | 10 mm |
| Type | Connection terminal |
| for earth rods | 14,2 mm |
| Fit | Rd 8-10/FL max. 26 mm |
| Dimension | 59x25x65 |
| Material | Red bronze |
| Clamping range, min. | 8 mm |
| Clamping range, max. | 10 mm |
| Suitable for flat conductor width max. | 25 mm |
