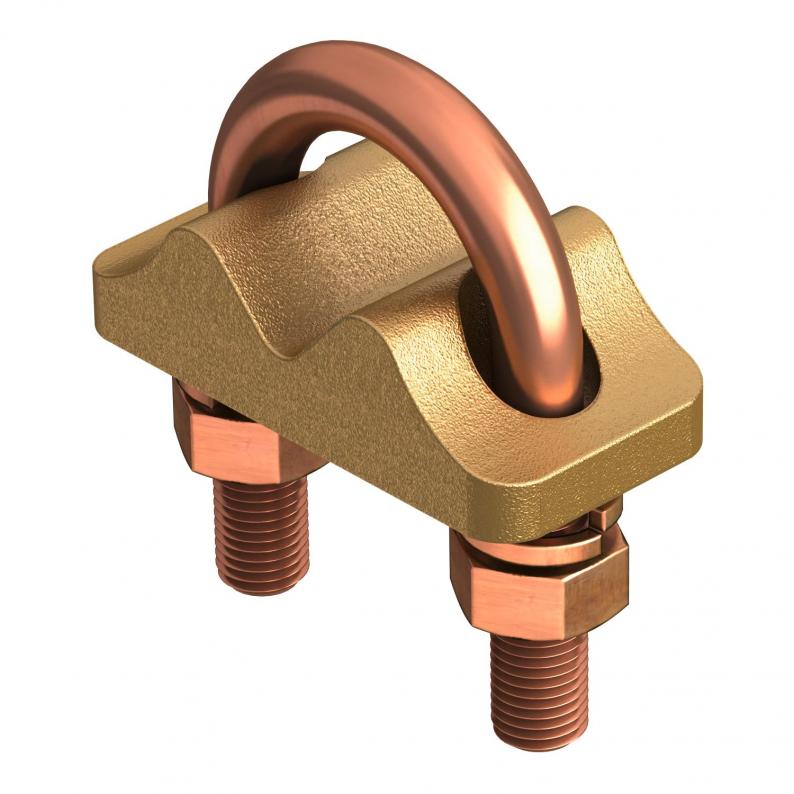

Connection clamp

Type 2740 16 | Item no. 5001511 | EAN 4012196431168

Item no. / Type

for earth rods

Smallest selling unit: 10 piece

Description

• Suitable for connecting round conductors Rd 8-10 or flat conductors with earth rod 219 16 CU

Intermediate plate	no
Type of connector	Connectors
Earthing connection diameter	16 mm
Connection	Flat conductor
Suitable for round conductor diameters, max.	10 mm
Suitable for round conductor diameters, min.	8 mm
Type	Connection terminal
for earth rods	14,2 mm
Fit	FL/ Rd mm

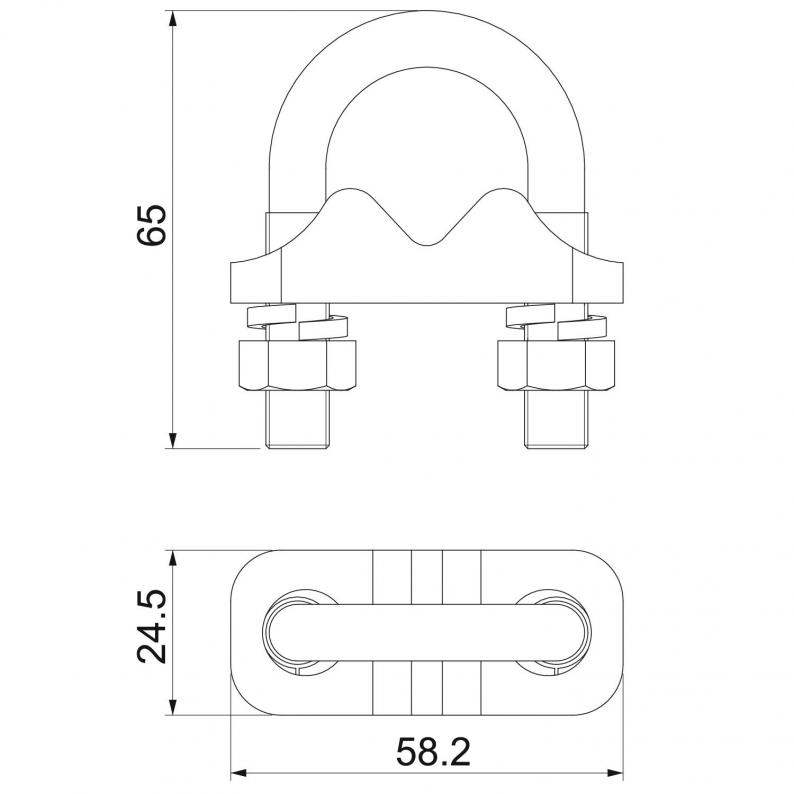

Dimension	59x25x65
Material	Red bronze
Clamping range, max.	10 mm
Clamping range, min.	8 mm
Suitable for flat conductor width max.	25 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,4021 kg CO2e / 1 Piece
