Connection cable ‒ AL EX ISG
Type AL EX ISG 200
|Item no. 5240104
|EAN 4012196521166
Item no. / Type
5240104 / AL EX ISG 200
Smallest selling unit: 1 piece
1piece
piece
Description

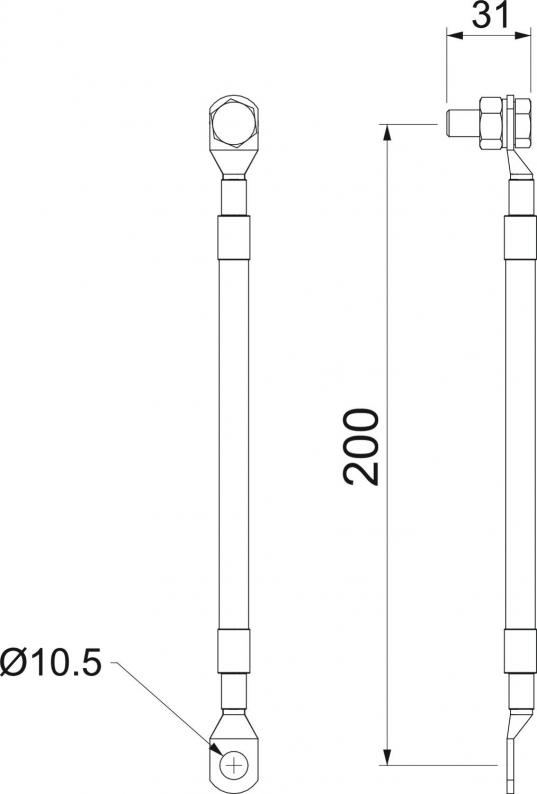

UV-resistant connection cable (copper 25 mm²) for mounting the OBO Ex spark gap, type EX ISG, on insulating flanges and insulating pieces. With cable shoe for M10 bolts on both sides, on one side with M10 bolt, nuts and spring ring.
Technical data
Technical data
| Dimension | 200 |
|---|---|
| Connecting cable length | 0,2 m |
| Dimension | 200mm |
| Material | Copper |
| Accessories | yes |
| Spare part | no |
| Type of accessory, accessory for surge protection, energy technology | Connection cable |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4258 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Connecting cable length
Item no.
AL EX ISG 200
0,2
5240104
AL EX ISG 200
Item no.
5240104
Connecting cable length
0,2
